Calitone Switchcraft 3-way Toggle with Shielded wiring

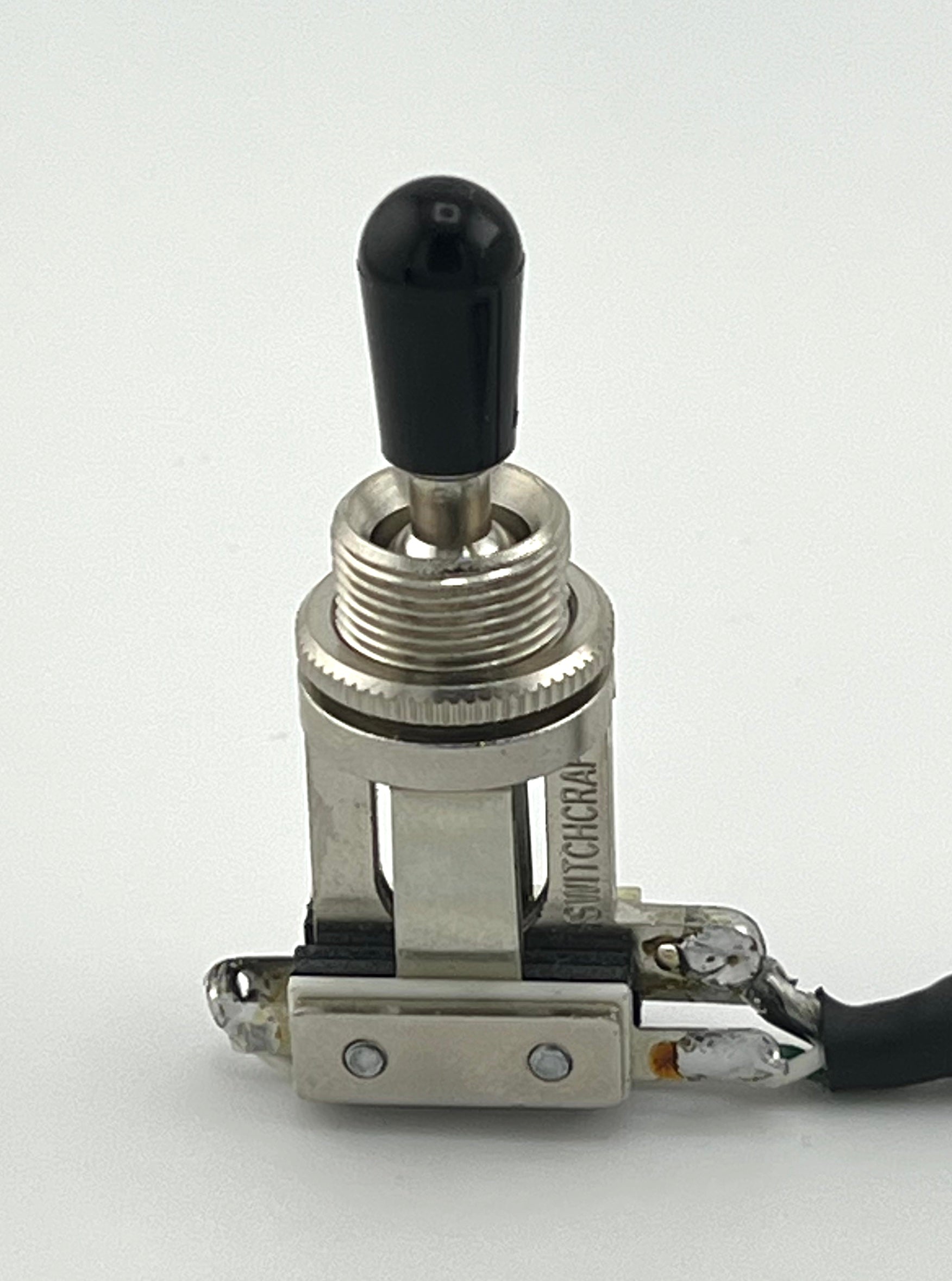

Calitone Switchcraft® 3-Way Toggle Switch (with Tip) – Les Paul® Style

The gold standard in pickup selectors, this genuine Switchcraft® 3-way toggle switch is the same type trusted in countless Les Paul® and LP-style guitars. Known for its rock-solid reliability and smooth feel, it’s ideal for Les Paul restorations, upgrades, and custom builds.

Specifications

Mechanical

• Thread height: 0.34”
• Mounting hole required: 0.50” (12.7 mm)
• Compatible control cavity depth: 0.875” (22.2 mm) – fits most Les Paul® style guitars
• Tip threading: #8-32 (compatible with standard Les Paul® switch tips)

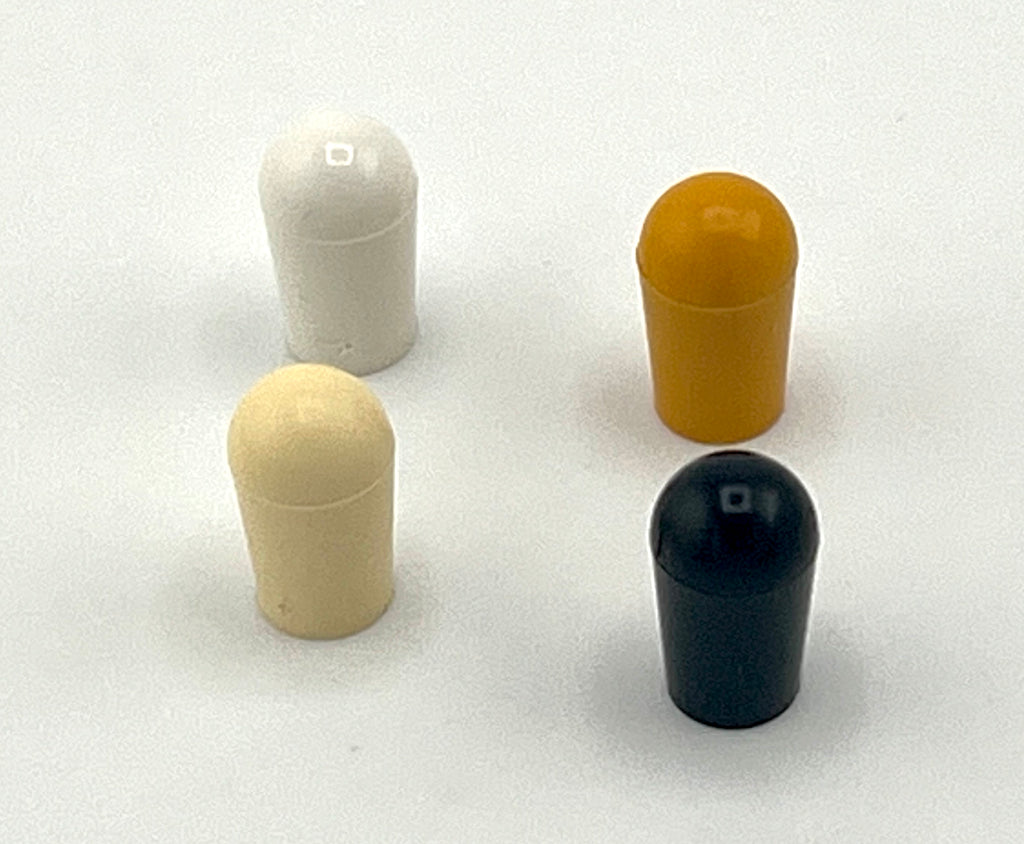

• Black tip included – message for white, cream, or amber tip option
• Includes 15/32”-32 recessed knurled nut for secure mounting
• Pre-tinned lugs for fast, clean soldering
• Pre-installed 24 AWG stranded wiring, 18” length for easy installation
• Switch cap sold separately if additional colors desired
• ⚠️ Installation Note: Some imported or non-standard guitars may require the switch hole to be widened slightly to fit the U.S.-sized Switchcraft® bushing.

Electrical

• Contact Ratings: Fine silver contacts, 3A, 300W maximum AC non-inductive load
• Leakage Resistance: ≥ 1,000 MΩ
• Dielectric Strength: 250 VDC

Materials

• Frame: Steel, plated
• Bushing & Shaft: Copper alloy, plated
• Springs: Copper alloy
• Mounting Hardware: Knurled copper alloy locknut (T10711) included
• Insulation: Rigid plastic spacers with tubing, thermoplastic cam on actuator end

Why Choose Calitone

Every Calitone-supplied Switchcraft® switch is quality-checked for durability and consistency. Whether you’re restoring a vintage Les Paul®, upgrading a modern LP, or wiring a custom build, this switch delivers professional-grade performance trusted by luthiers and players worldwide.
