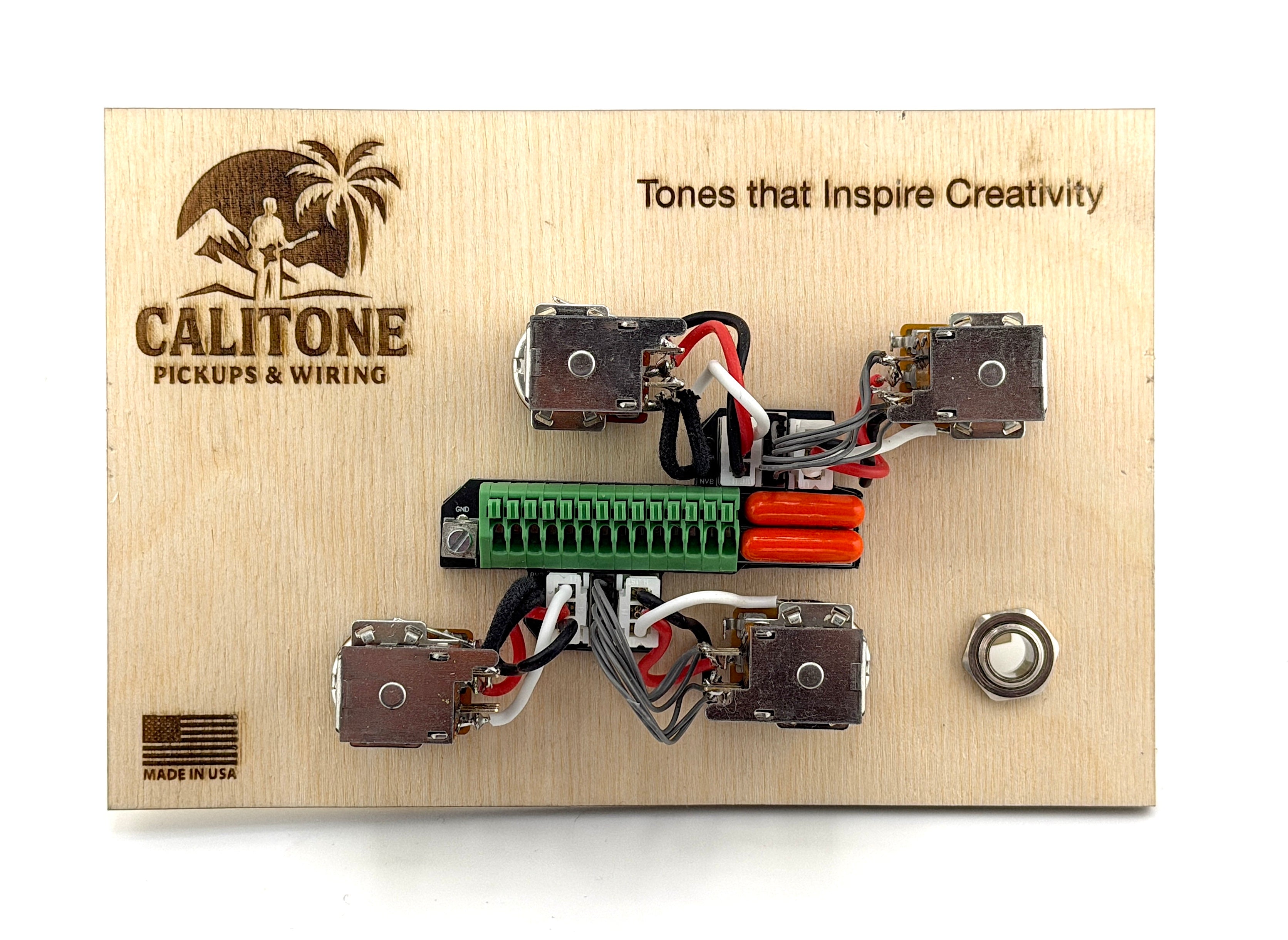

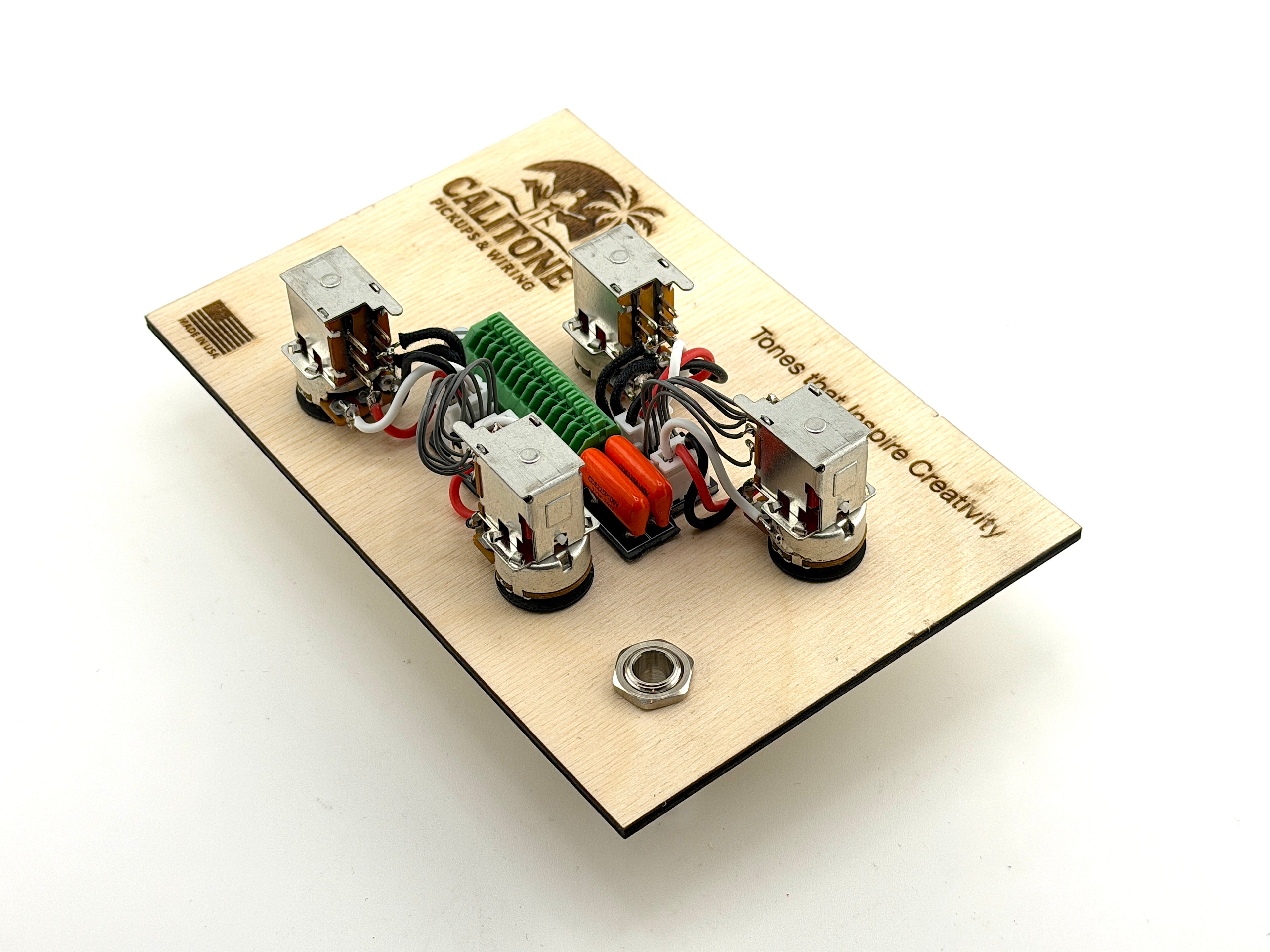

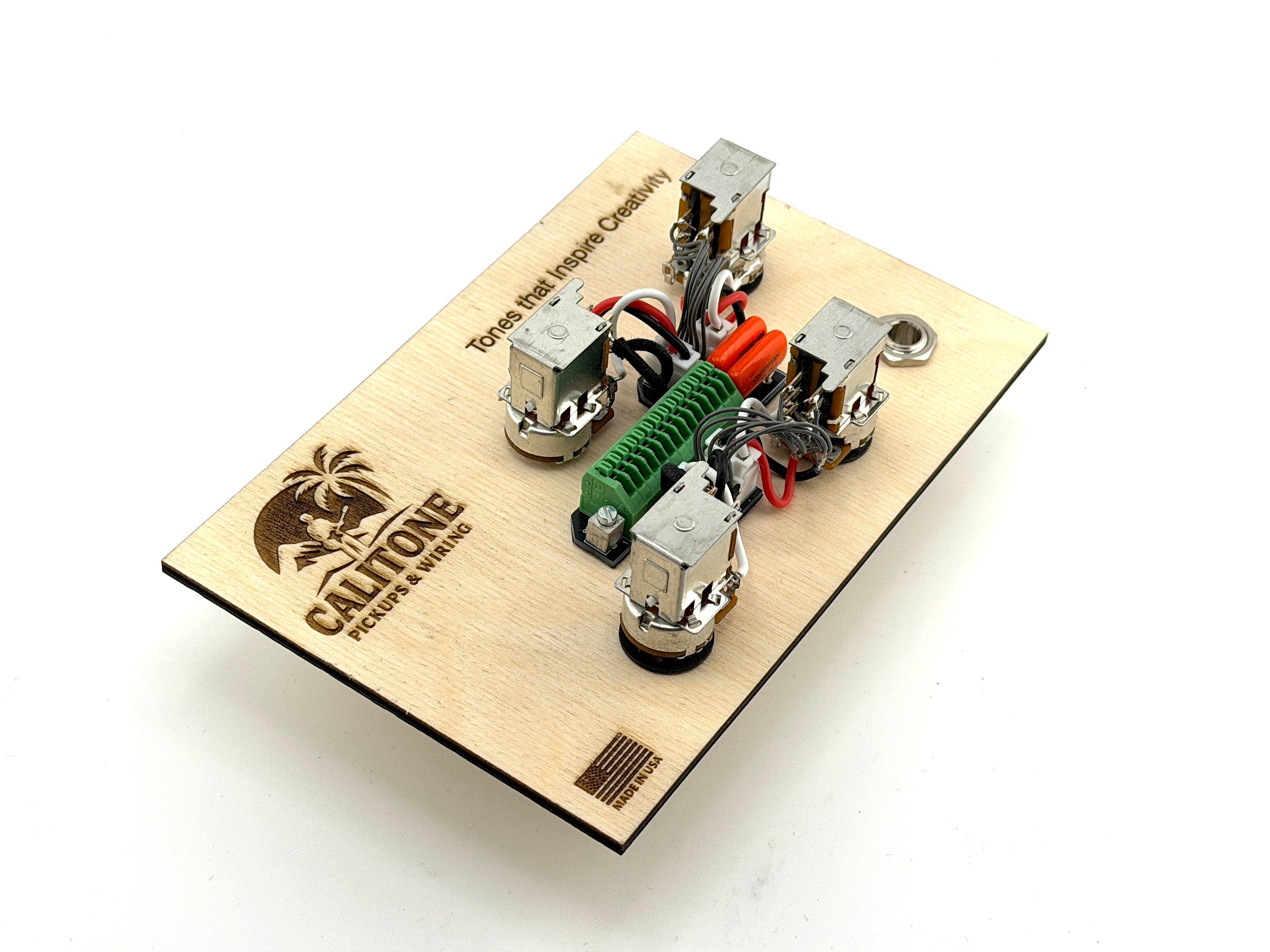

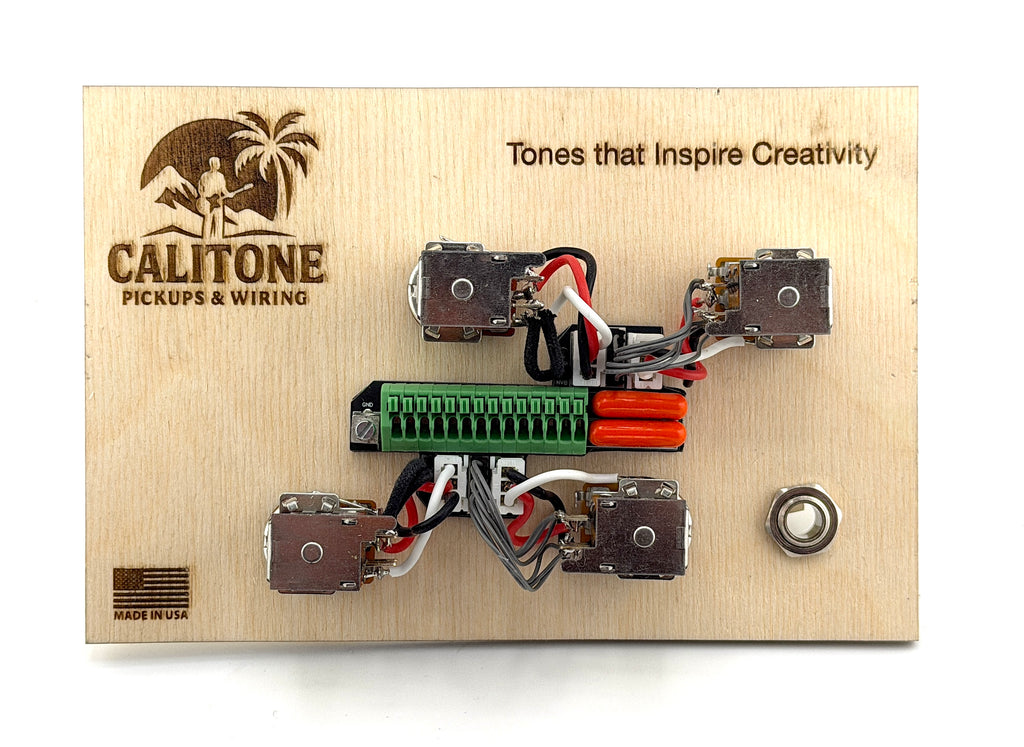

Calitone Flex Fit Jimmy Page Wiring Harness – Versatile, Solderless Upgrade for Les Paul–Style Guitars
Legendary tone. Versatile fit. No soldering.
The Calitone Flex Fit Jimmy Page Harness brings iconic Led Zeppelin wiring to nearly any guitar with a Les Paul–style control layout—including kits, imports, and tight-cavity builds. With push-push pots, 21 tone combinations, and zero soldering required, this harness is the ultimate upgrade for players seeking pro versatility in a drop-in format.
Key Features – Built for Flexibility & Tone Control
4 × 500k Low-Profile Push-Push Pots (Bourns®-Style)
-
Bridge Volume – Coil-splits bridge pickup (Audio taper)
-
Neck Volume – Coil-splits neck pickup (Audio taper)
-
Bridge Tone – Engages out-of-phase wiring (Linear taper)
-
Neck Tone – Switches to series mode for fatter output (Linear taper)
Capacitors – 2 × 0.022μF Orange Drop (100V) for smooth, vintage-style tone roll-off
Jack – Premium Switchcraft short mono output jack
Quick-Connect PCB – Solderless terminal block for pickups and toggle switch
Supports – Pickup connections with 4-conductor wire plus bare ground
Control Layout – Designed for 2-volume / 2-tone / 3-way toggle setups
21 Classic & Modern Tones
From Jimmy Page–style experimentation to modern gigging flexibility:
-
Full humbuckers
-
Coil-split single-coils (both pickups)
-
Out-of-phase “nasal” tones (think “The Rover” and “Out On The Tiles”)
-
Fat, powerful series wiring
-
Clean blending in middle position (no signal cut at “0”)
-
Push-push pots for fast switching on stage
Requirements & Compatibility
To ensure a smooth installation and full functionality, please review the following fit and wiring requirements:
-
Potentiometer Mounting Holes:
Requires ⅜" (9.5mm) diameter holes to fit the low-profile push-push pots.
Most import guitars will need to enlarge their holes slightly using a hand reamer (not a drill) for a clean fit.
-
Body Style:
Designed for Les Paul–style guitars with a standard 2-volume / 2-tone / 3-way toggle control layout.
Works with most Gibson Les Paul, Epiphone Les Paul, PRS Se Single Cut (2v - 2T), Harley Benton, kit builds, Chibsons, and custom LP-style guitars.
-
Knob Fitment:
Pots are fine spline U.S.-sized shafts (24-tooth).
Use U.S.-spec knobs only. Import knobs may not fit.
-
Pickup Wiring:
Requires 4-conductor pickup wiring with a separate bare ground wire for full solderless installation.
Pickups with vintage braided wire are supported, but will require soldering the ground to the terminal block.
-
Toggle Switch Wiring:
Compatible with toggle switches wired with 4-conductor (shielded) cable.
For best results and easiest solderless installation, we recommend the Calitone 4-Conductor Shielded Switch which is selectable as an opiton.
21 Classic & Modern Tones
From Jimmy Page–style experimentation to modern gigging flexibility:
-
Full humbuckers
-
Coil-split single-coils (both pickups)
-
Out-of-phase “nasal” tones (think “The Rover” and “Out On The Tiles”)
-
Fat, powerful series wiring
-
Clean blending in middle position (no signal cut at “0”)
-
Push-push pots for fast switching on stage
💬 F.A.Q.
Q: Why do the volume knobs not go completely silent at zero?
A: To preserve blending in the middle position—just like Page’s rig. Series mode acts like a kill switch when in bridge position.
Q: Is this 50s wiring?
A: No. We use 60s-style wiring for smoother volume response and blendability.
Q: Do the push-push pots work like push-pull pots?
A: Yes, but push-push pots are faster and easier to switch, especially live—no need to pull the knob up.
Q: Will this fit my Epiphone or import LP?
A: Yes—as long as it follows the Les Paul 2V/2T layout and control holes are widened to ⅜" (9.5mm). Perfect for kits and modders.
Q: What type of pickup wiring is required?
A: This harness is designed for pickups with 4-conductor wiring and a separate bare ground wire.
🇺🇸 Built by Calitone – Boutique Quality, Pro-Grade Design
-
Made in the U.S.A. with hand-selected, roadworthy components
-
Solderless install = beginner-friendly and easily reversible
-
Backed by our 5-Year Warranty and 30-Day Return Policy
Perfect For:
-
Import LPs & DIY builds with tight control cavities
-
Players wanting Jimmy Page flexibility without soldering
-
Studio musicians & live performers needing fast switching
⚠️ Disclaimer
This product is not affiliated with, endorsed by, or reviewed by Jimmy Page, Led Zeppelin, or any associated parties. It is a tribute to the widely known wiring configuration used by Jimmy Page and is intended for educational and aftermarket upgrade purposes only.
