Calitone Les Paul Modern Split Coil Wiring Harness with Switchcaft Toggle and Switchcraft Output jack
$124.99
Reliable shipping
Flexible returns

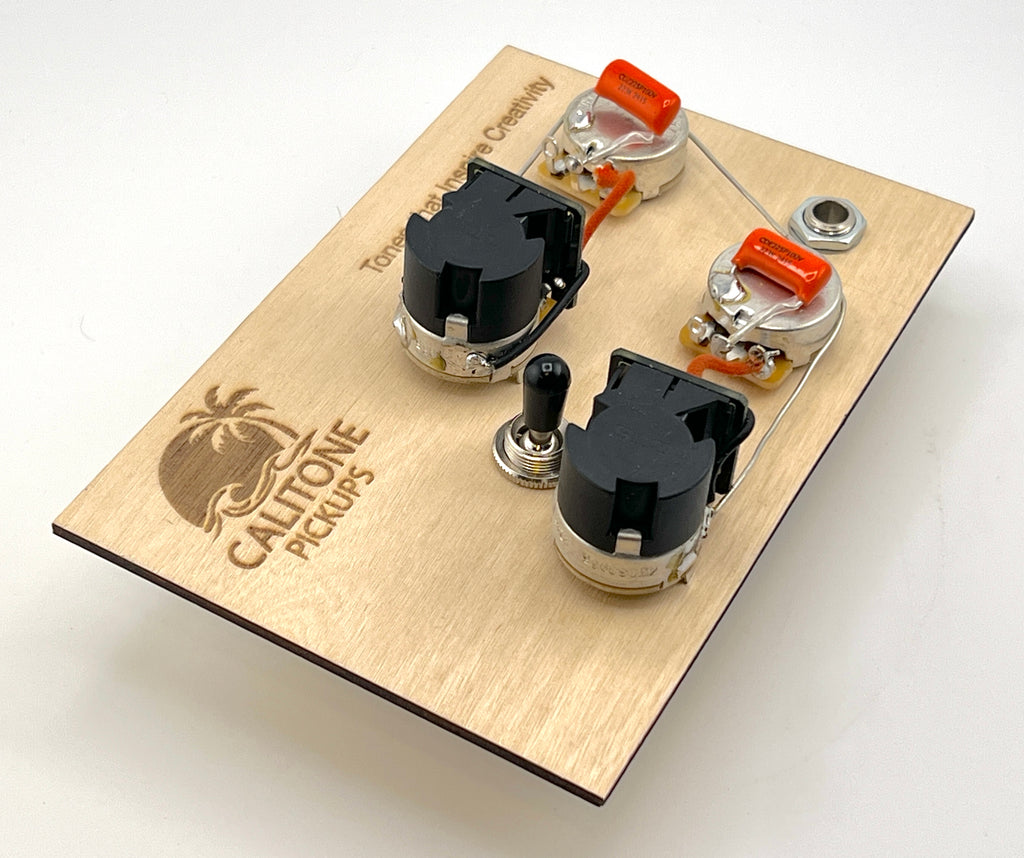

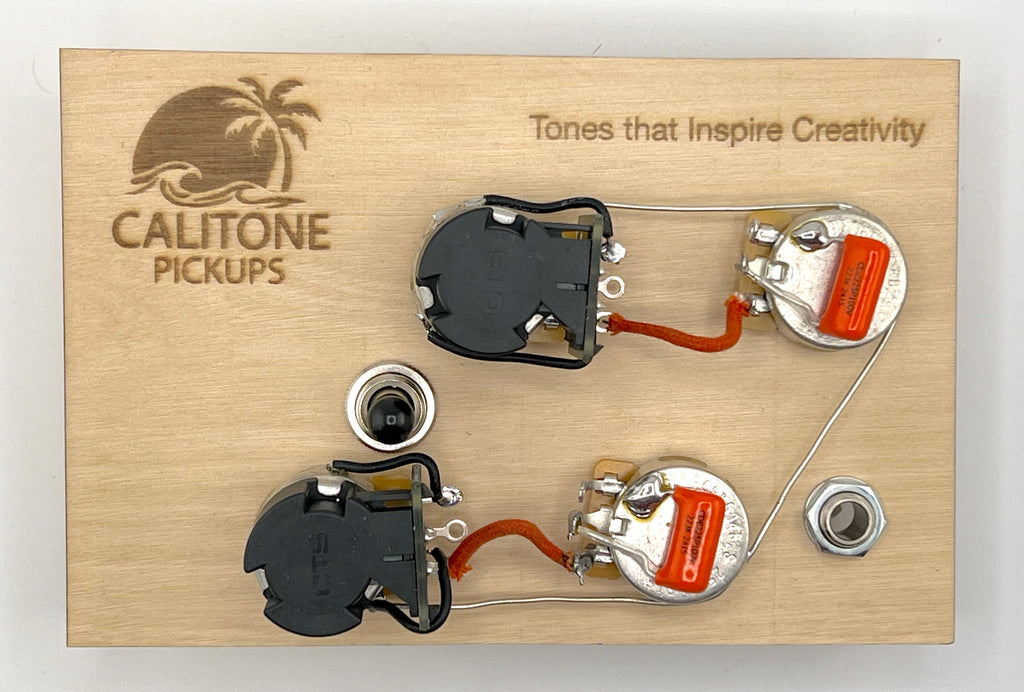

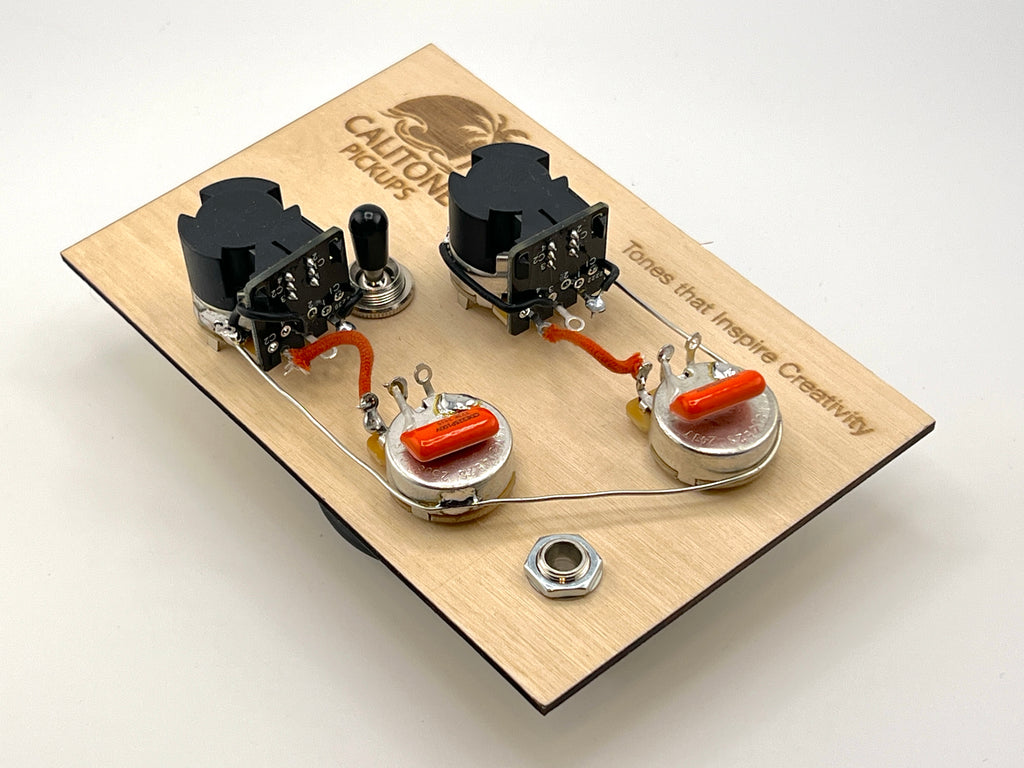

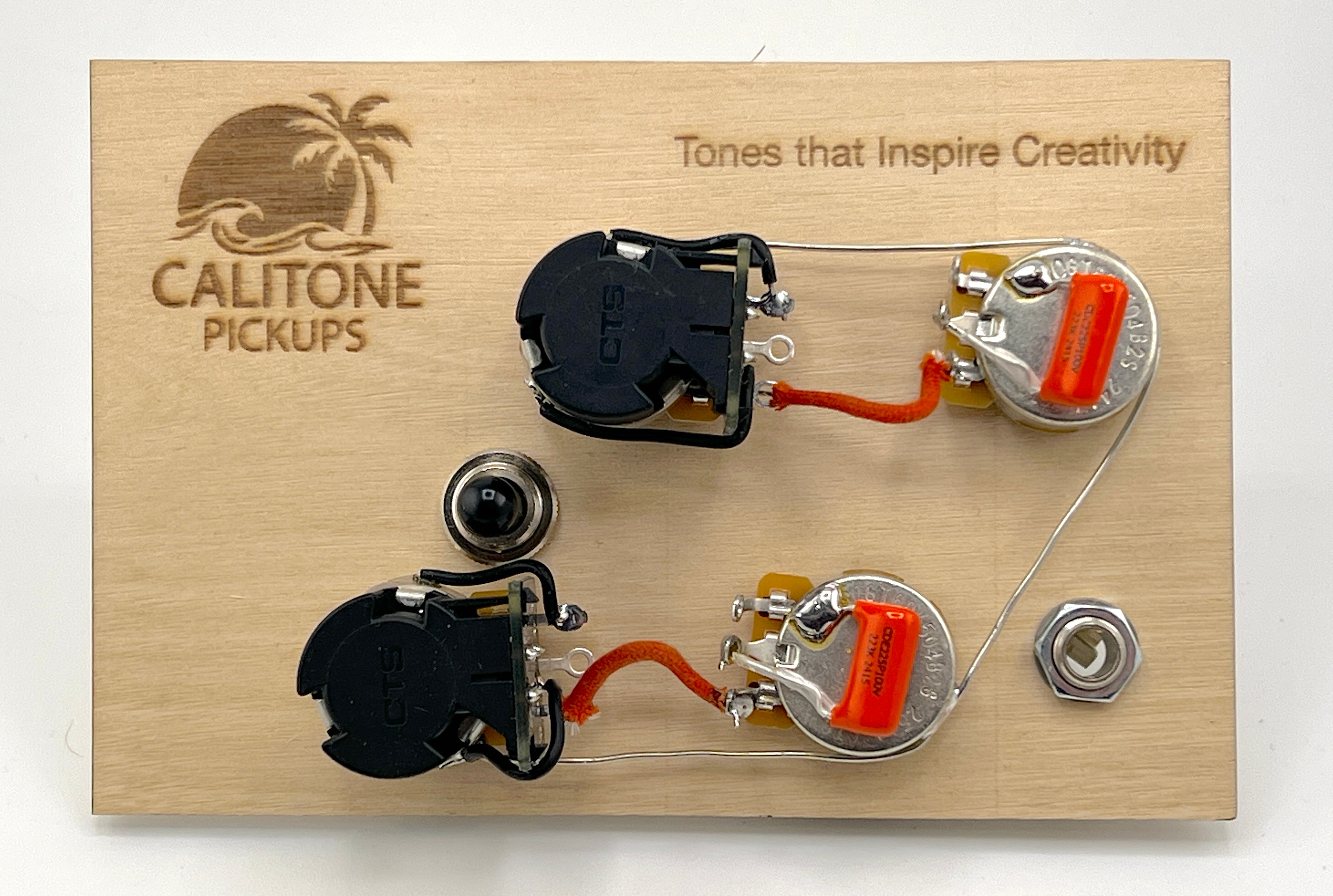

Les Paul Modern Wiring Harness – With Coil Split
Give your Les Paul modern versatility with this coil-splitting wiring harness, built on the dependable modern wiring layout. Featuring premium CTS push/pull pots, Orange Drop capacitors, and Switchcraft hardware, this harness delivers everything from full humbucker power to crisp single-coil tones—all with reliable, consistent controls.
** 4-conductor pickup wiring required for this harness **
Features:
-
2 × 500k CTS Long Shaft Audio Taper Push/Pull Volume Pots
-
Push/Pull: Splits each humbucker into single-coil mode for brighter, more articulate tones.
-
-
2 × 500k CTS Long Shaft Linear Taper Tone Pots – Smooth, predictable tone roll-off.
-
Capacitors: 2 × 0.022µF Orange Drop (100V) – Warm lows and crisp highs for balanced tone.
-
Wiring: Modern Wiring – Provides consistent tone control across all pickup blends.
-

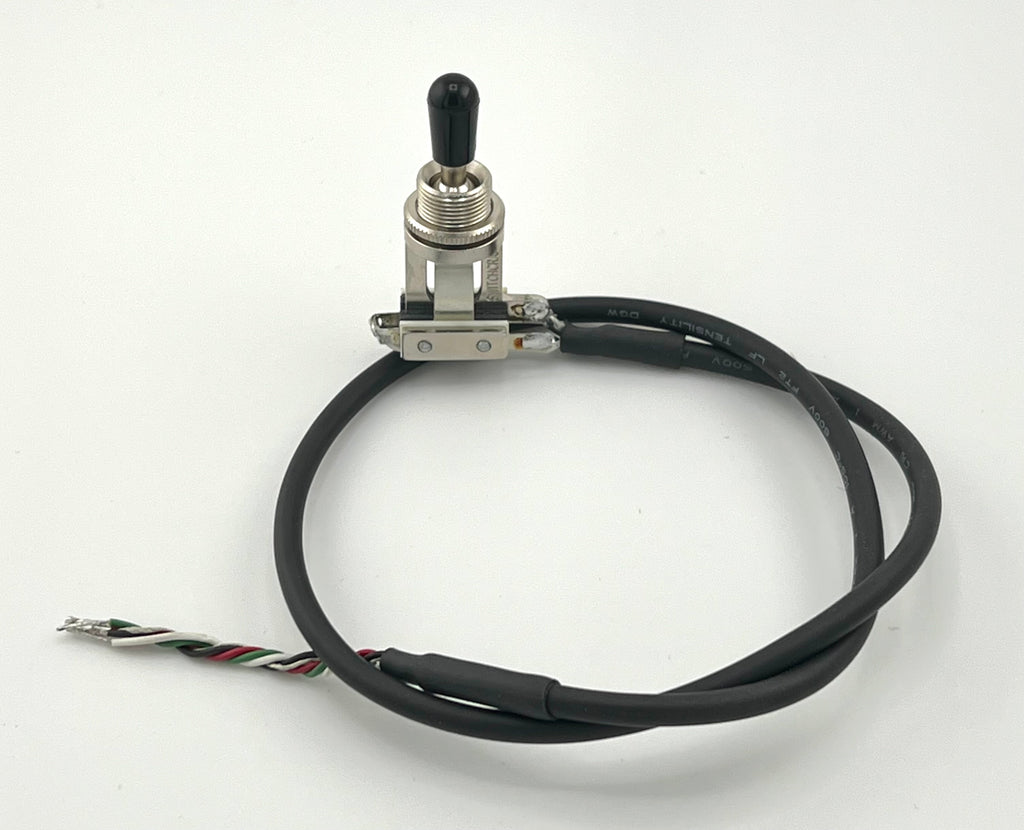

Switchcraft 3-Way Toggle Switch (Prewired with 18" of Shielded 24 AWG Wire) – Low-noise, reliable pickup selection.
-
Switchcraft Mono Output Jack (Prewired with Vintage Cloth Wire – White is Hot) – Rock-solid connection.
-
Vintage Cloth Push-Back Wire – Traditional look and durable build.
-
Solderless PCB for Pickups & Switch Connections – Quick, easy, and clean installation.
Why Choose Modern Wiring with Coil Split?
Modern wiring ensures smooth, consistent tone control, making it predictable in both live and studio environments. With added coil-splitting on both pickups, this harness lets you cover a wide tonal range—from thick, classic Les Paul crunch to bright, cutting single-coil clarity—without changing guitars.
Fitment Disclaimer:
This harness uses full-size CTS pots. Gibson Les Paul models are a direct fit, but many Epiphone and imported Les Paul-style guitars use smaller metric-sized pots. In those cases, the control holes may need to be widened to ⅜" (9.5mm) to fit CTS pots. We recommend using a guitar tuner reamer for a clean and safe modification.
