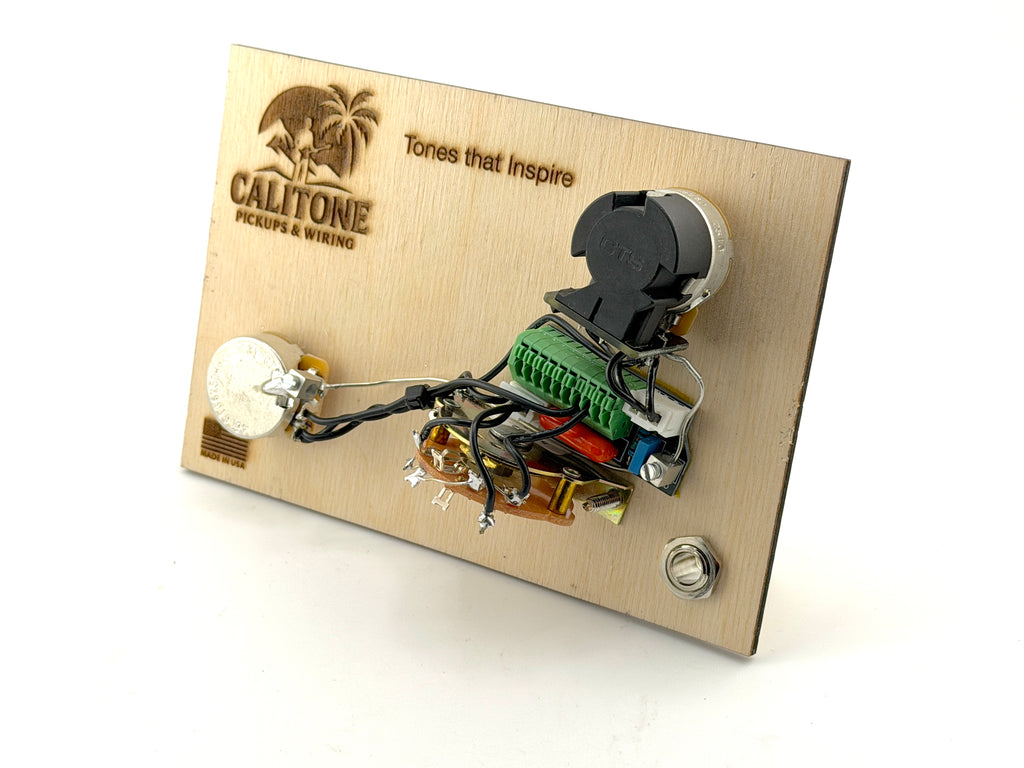

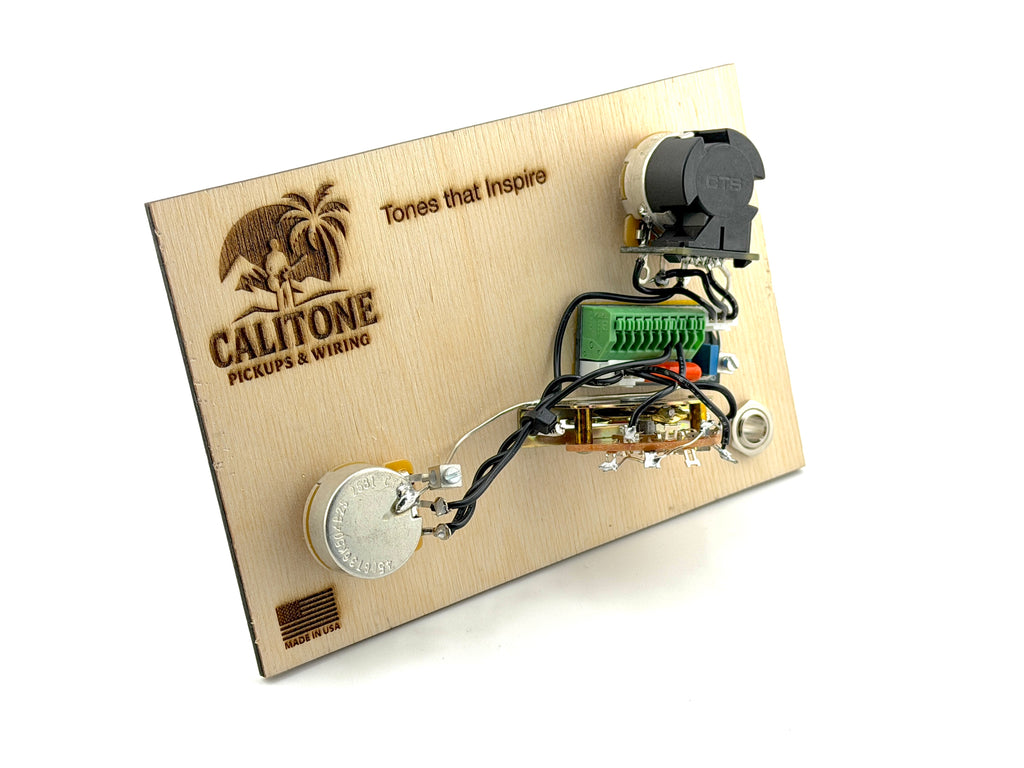

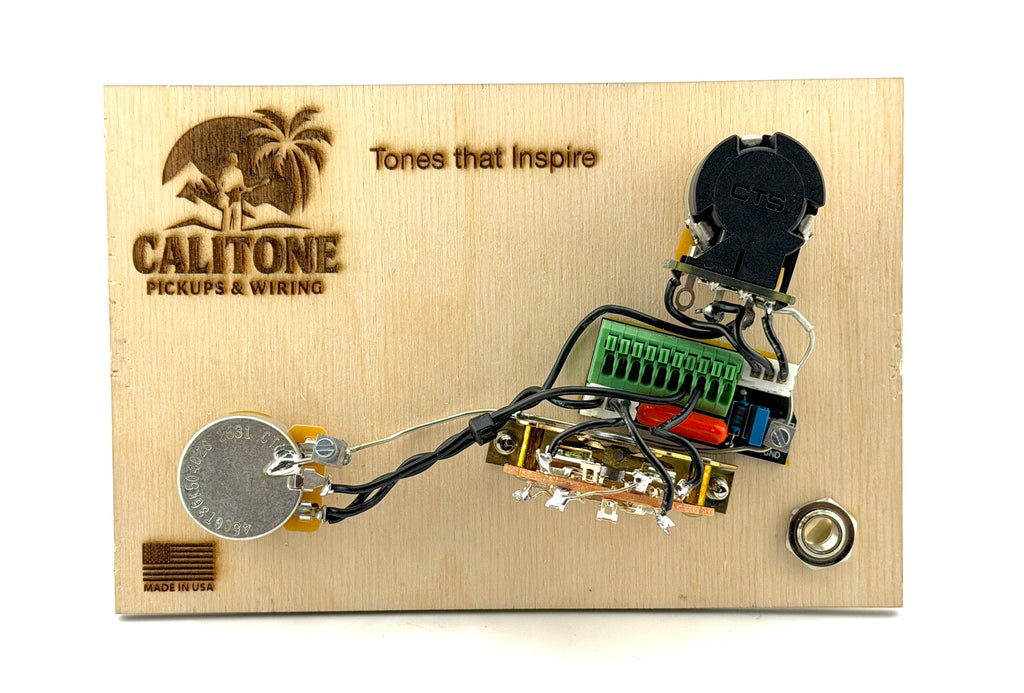

Calitone PRS Solderless Wiring Harness 1V 1T 3-Way Blade Coil Split CTS

Upgrade your PRS-style guitar with a premium solderless wiring harness designed for 2 humbuckers, a 3-way blade switch, and a streamlined 1 volume / 1 tone control layout. Built with USA-spec components and performance-focused wiring, this harness delivers clarity, versatility, and reliable operation in a clean, easy-to-install format.

Perfect for players searching for a PRS Custom 24 wiring harness or PRS SE wiring upgrade, this system gives you pro-level tone and the freedom to easily modify your setup anytime.

Swap Pickups in Minutes — No Soldering

One of the biggest advantages of the Calitone solderless system is the ability to change pickups quickly and easily:

• Install or swap pickups without soldering
• Test different pickups without rewiring your guitar
• Ideal for experimenting with tone or upgrading over time
• Clean, secure terminal connections

Whether you're dialing in your perfect tone or planning future upgrades, this harness makes your guitar fully modular.

Coil Split for Expanded Tone

Unlock single-coil-style tones with the integrated push-pull control:

• Split both humbuckers instantly
• Brighter, more articulate tones on demand
• Ideal for clean, edge-of-breakup, and dynamic playing

Volume Clarity (Treble Bleed Circuit)

Keep your tone clear as you roll back the volume:

• 1,000 pF (0.001µF) capacitor + 150k resistor (parallel)
• Retains high-end without sounding harsh
• Smooth, natural volume response across the full sweep

Premium USA-Spec Components

Built with trusted components for consistent performance:

• 1 × CTS 500k Audio Taper Volume Pot
• 1 × CTS 500k Push-Pull Pot (Coil Split)
• Fender 3-Way Blade Switch
• 0.022µF Orange Drop Capacitor (100V) for smooth, musical tone roll-off
• Switchcraft 1/4" Wired Output Jack

Designed for PRS Layouts

Optimized for guitars with:

• 2 Humbuckers
• 3-Way Blade Switch
• 1 Volume / 1 Tone

Clean layout ensures proper spacing and straightforward installation in PRS-style control cavities.

Fits PRS SE & S2 – Custom 22 / Custom 24

Designed to fit many PRS models including:

• PRS Custom 22
• PRS Custom 24
• PRS SE Custom 22 / Custom 24
• PRS S2 Custom 22 / Custom 24

Note: Some SE models may require minor pot hole enlargement to accommodate USA-spec CTS pots.

Additional Fitment Information

This harness may also be compatible with other PRS-style models that use a similar control layout. If you're unsure about fitment for your specific guitar, please contact us before ordering and we’ll help confirm compatibility.
