Les Paul Solderless with Volume Clarity Select

Les Paul Solderless Wiring Harness – With Volume Clarity (Treble bleed) Select Switches

Upgrade your Les Paul with this solderless wiring harness featuring Volume Clarity controls, designed for players who want to maintain crisp highs and definition even as the volume rolls down. Built with premium CTS pots, Orange Drop capacitors, and vintage cloth wiring, this harness provides authentic Les Paul tone with added versatility—all in a solderless format for quick, clean installation.

Features:

• 2 × 500k CTS Long Shaft Audio Taper Volume Pots – Smooth, natural volume control with maximum clarity.

• 2 × 500k CTS Long Shaft Linear Taper Tone Pots – Authentic tonal sweep with precision response.

• Capacitors: 2 × 0.022µF Orange Drop (100V) – Warm, balanced vintage tone.

• Volume Clarity Select Per Pickup (Treble Bleed):

  • 1000pF / 150k Parallel – balanced, natural clarity. Volume taper is more gradual, like a linear pot.

  • 1000pF / 150k Series – brighter, cutting response. Volume Taper is more similar to an audio taper.

  • Off – pure vintage roll-off.

• Wiring: Vintage cloth push-back wire for durability and traditional aesthetics.

• Output Jack: CTS short mono jack for dependable performance.

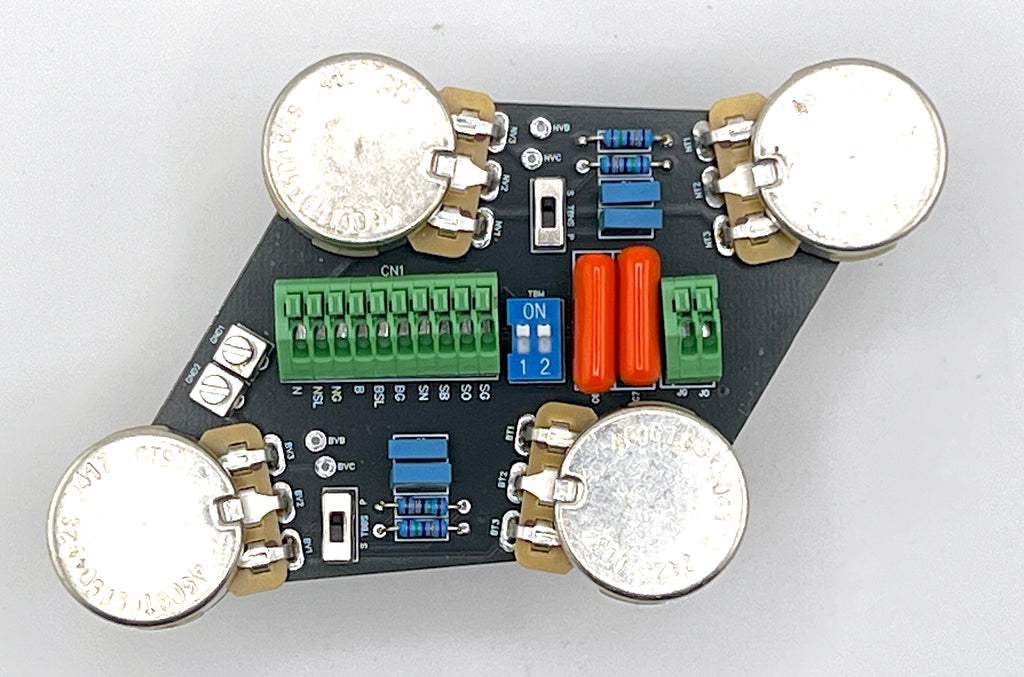

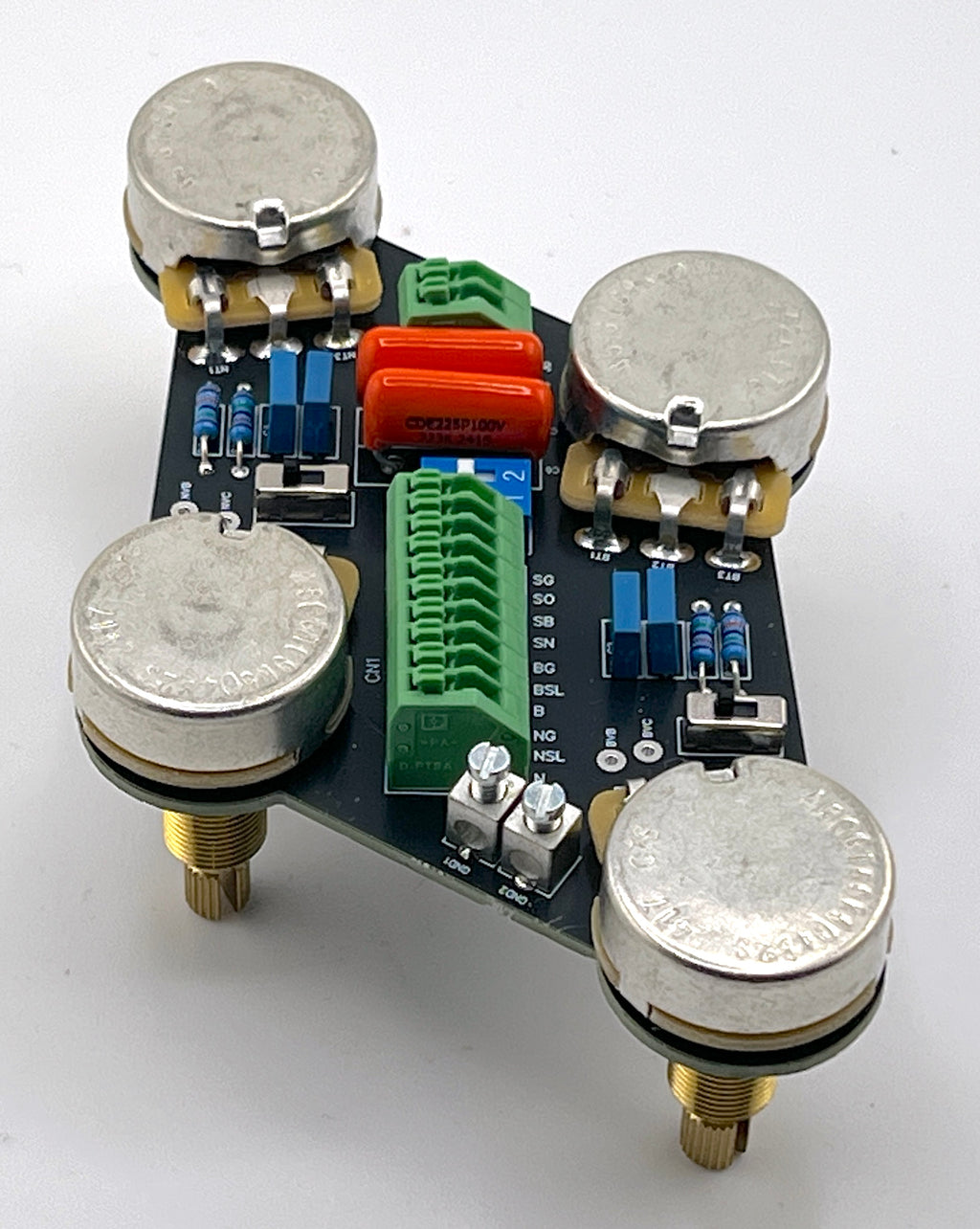

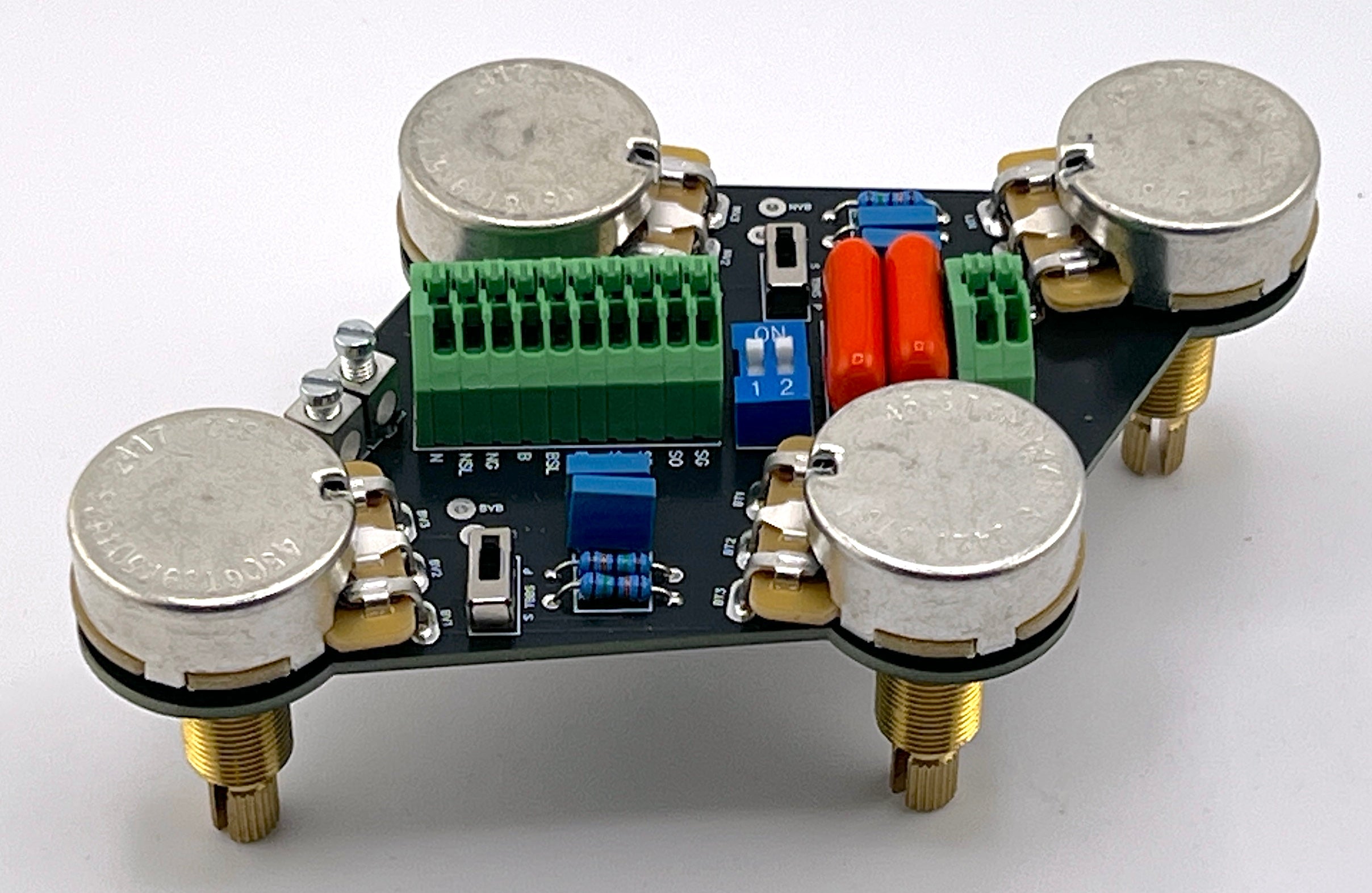

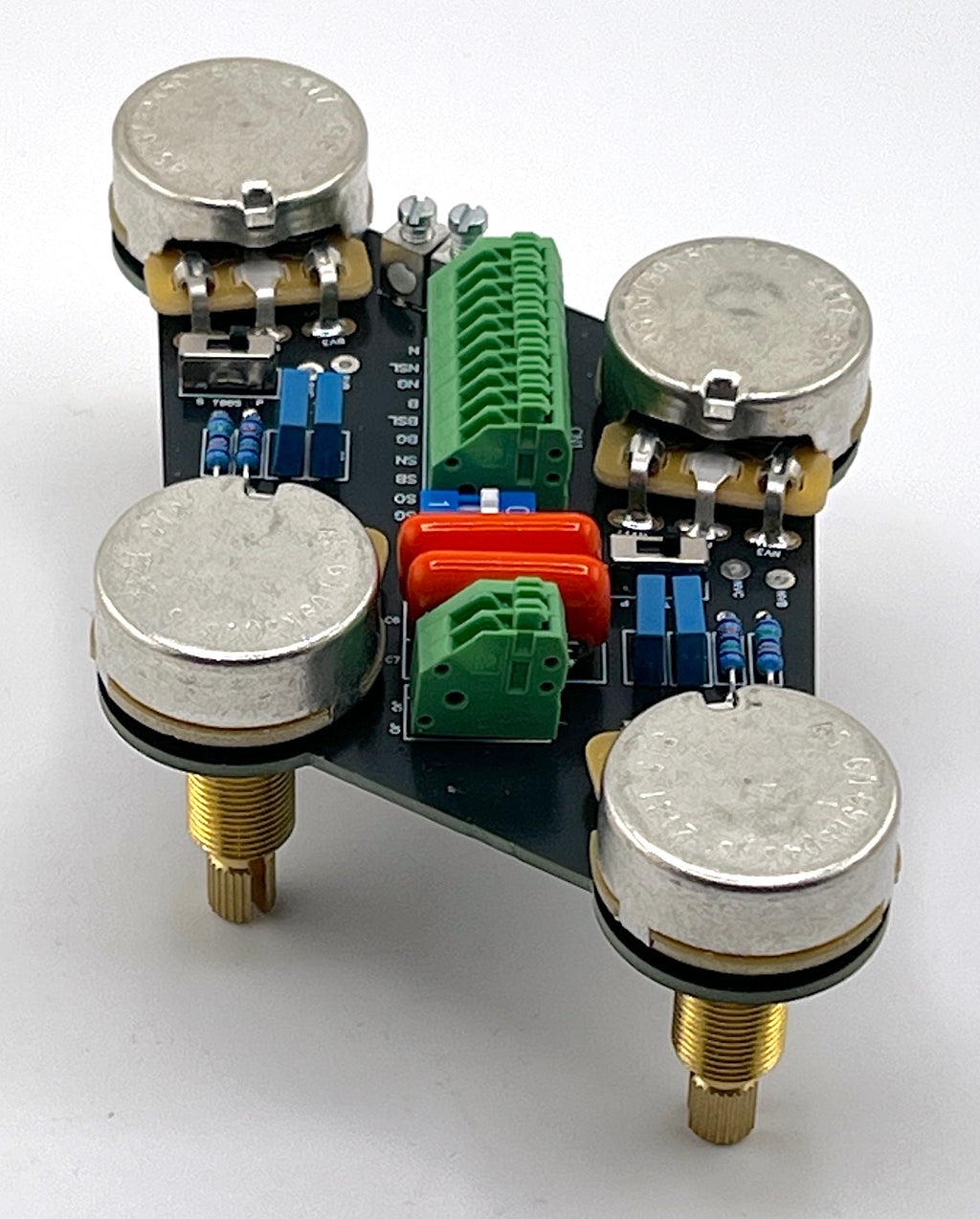

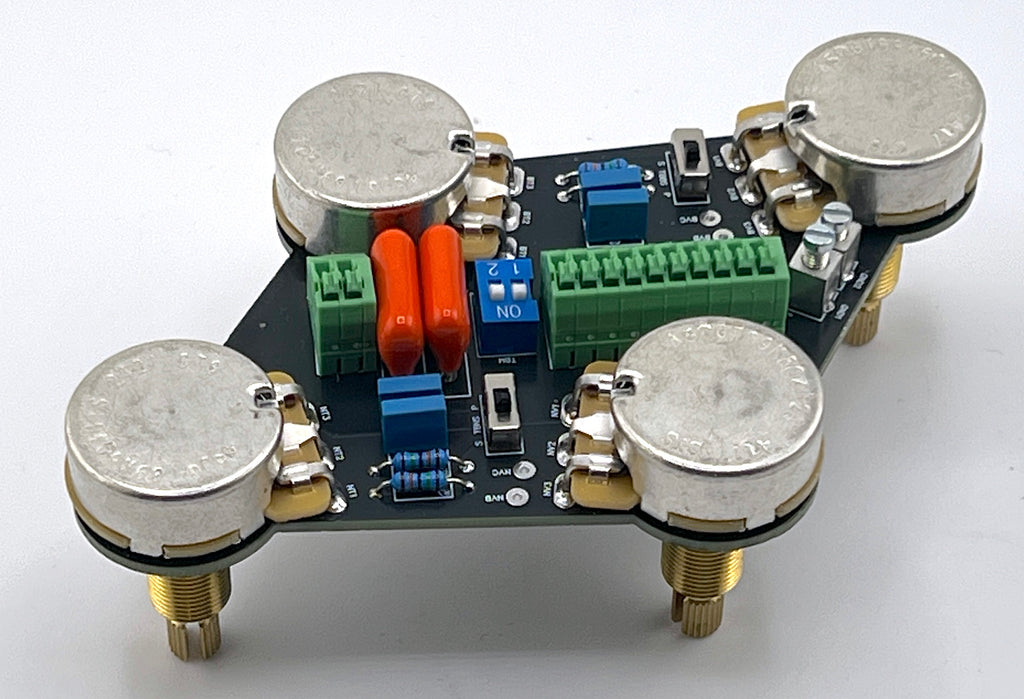

• Basic Solderless PCB: Quick-connect design for pickups & switch—no soldering required.

Why Choose This Harness?

This harness combines classic Les Paul tone with the flexibility of modern upgrades. The Volume Clarity feature ensures your guitar retains sparkle and definition at lower volume settings—perfect for players who ride the volume knob for dynamics. And with the ability to turn it on or off, you get the best of both worlds: vintage-correct wiring or enhanced clarity at the flip of a switch.

Disclaimer: Epiphone models may require widening the control holes to fit full-size CTS pots. We recommend using a guitar tuner reamer for a clean and safe modification.
