Les Paul Parallel / Series with Volume Clarity Select

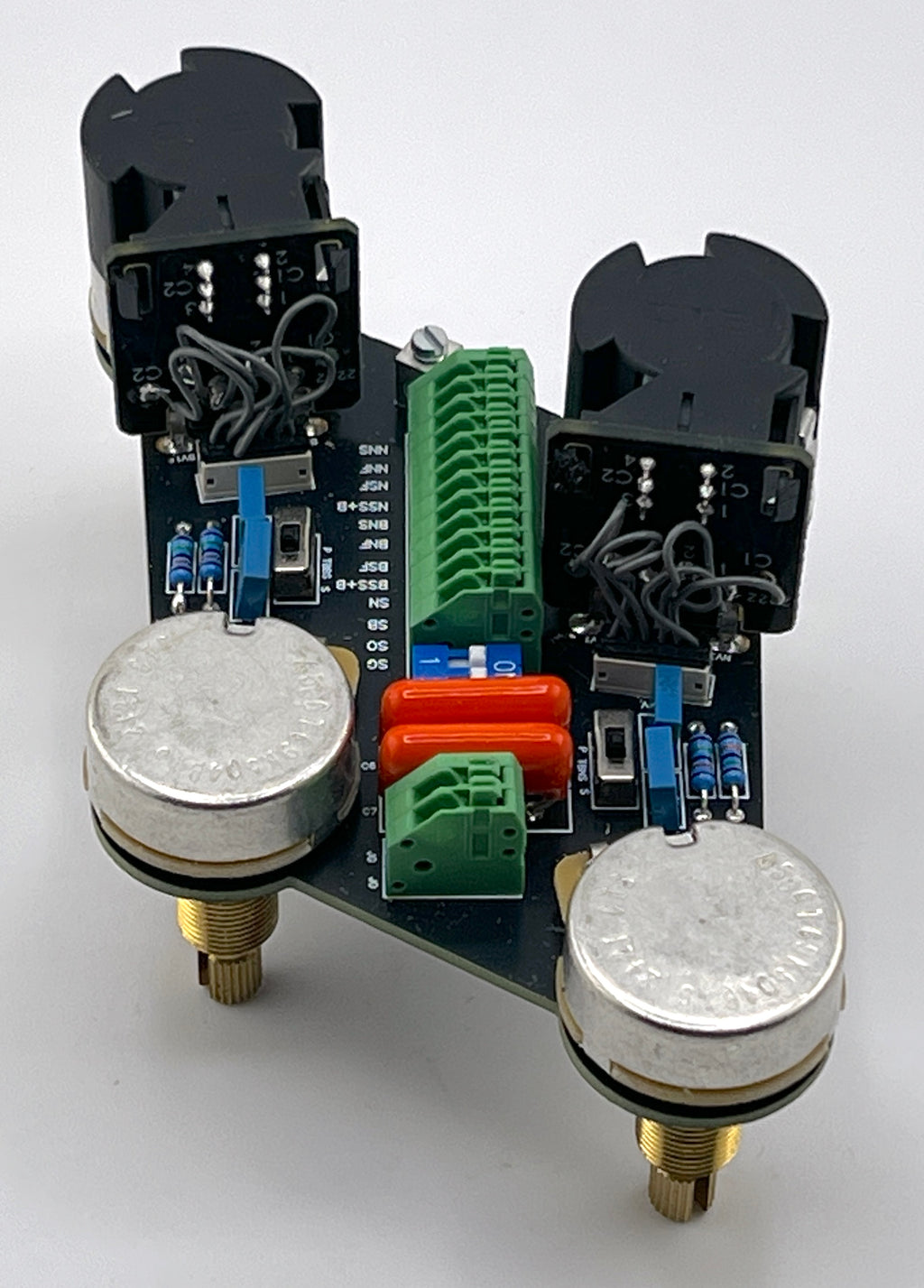

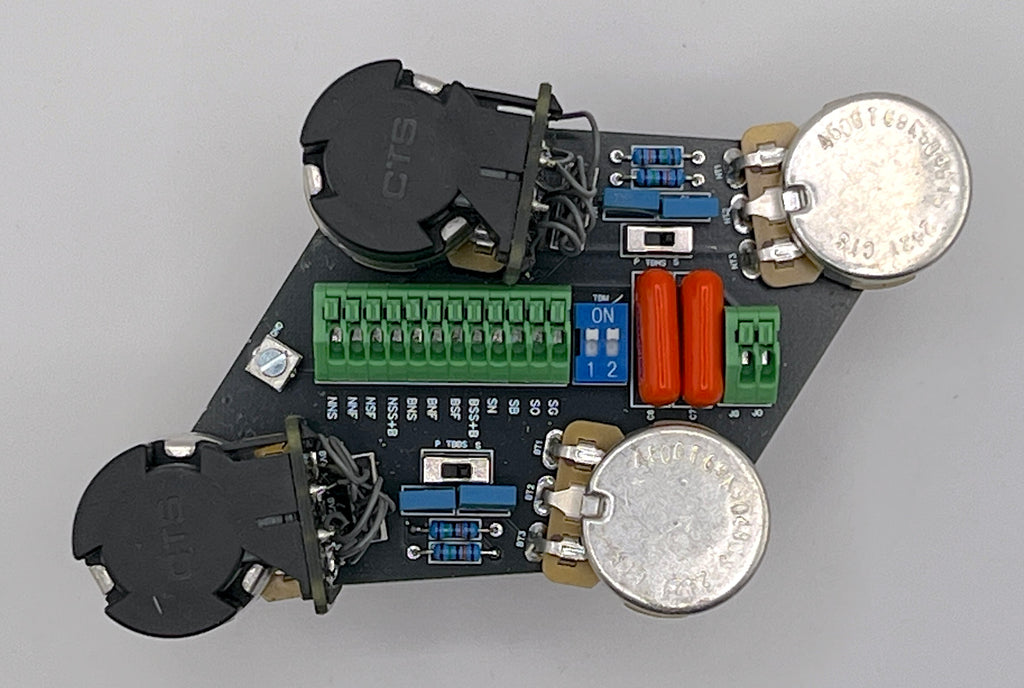

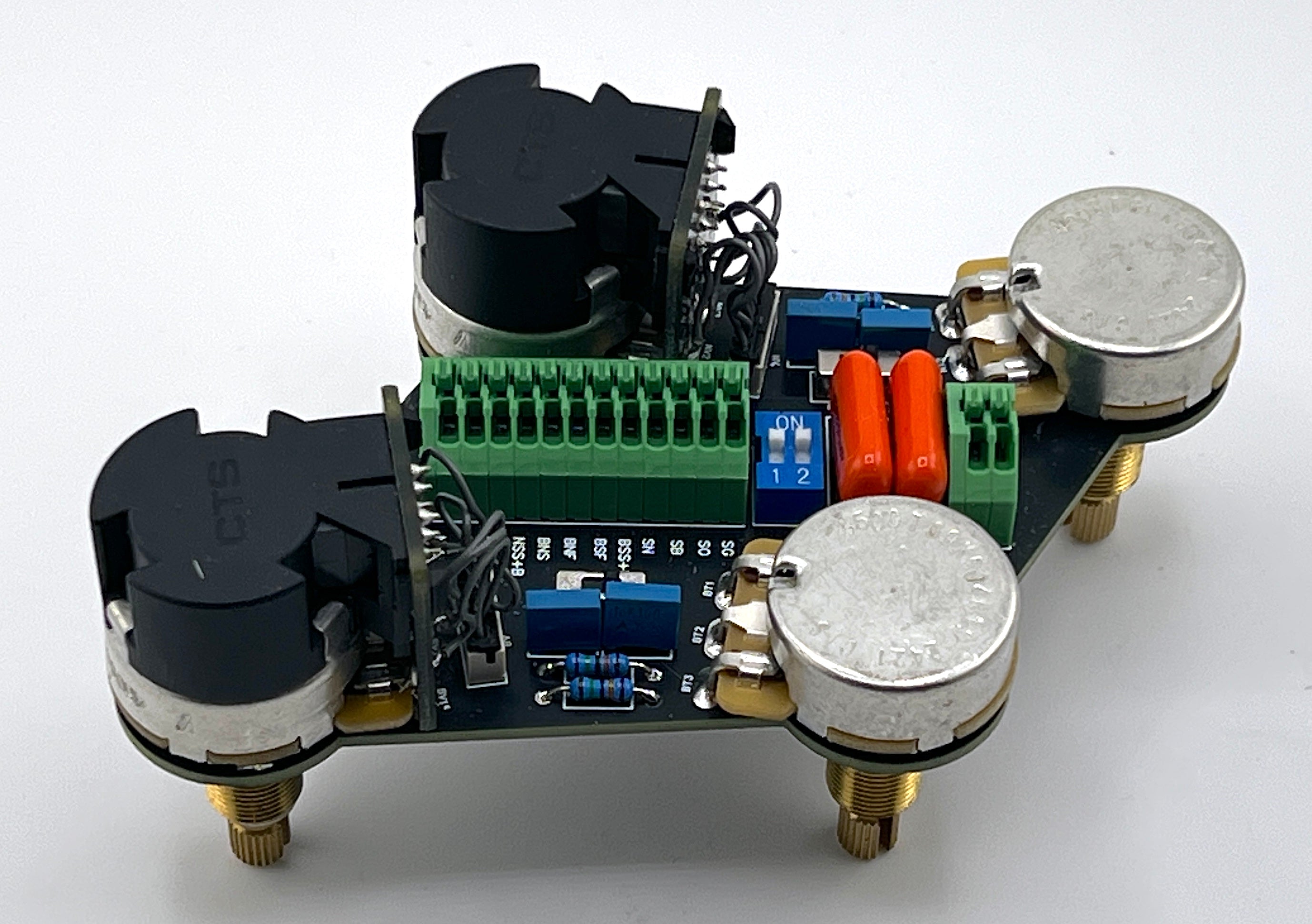

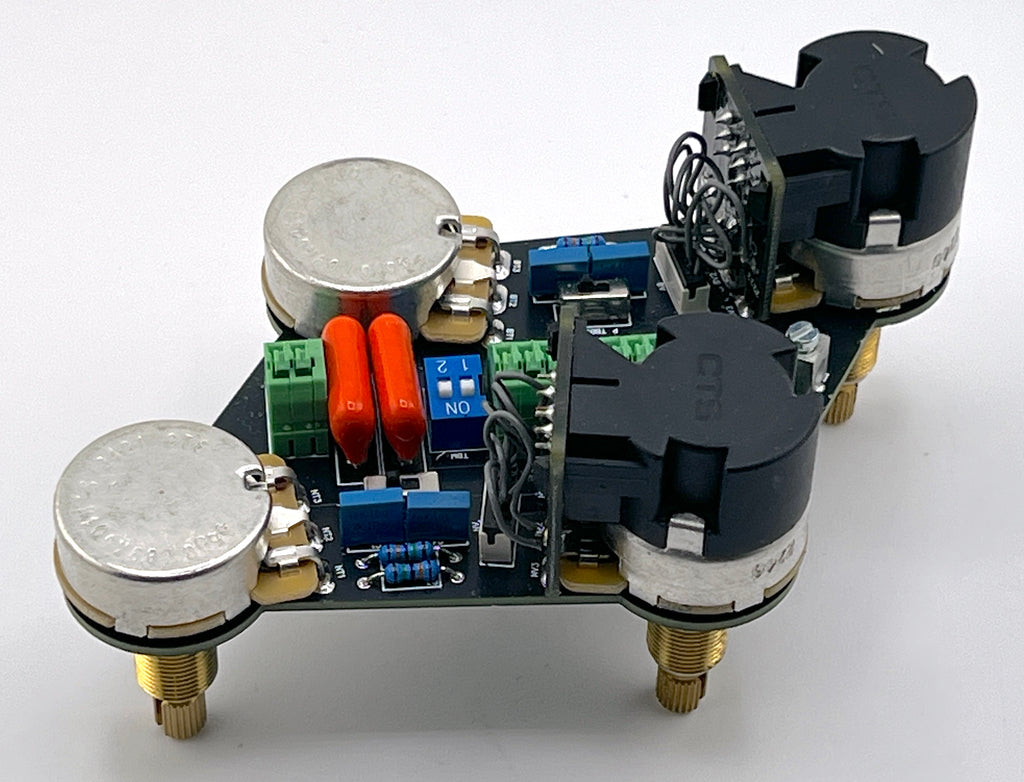

Les Paul Parallel / Series Wiring Harness – With Volume Clarity Select

Unlock new tonal options with this Les Paul wiring harness featuring push/pull parallel switching and selectable treble-bleed circuits. Built with premium CTS pots, Orange Drop capacitors, and vintage cloth wiring, this harness gives you classic Les Paul character with expanded versatility—all in an easy-to-install solderless format.

Features:

• 2 × 500k CTS Long Shaft Audio Taper Push-Pull Volume Pots

  • Bridge Volume (Pull): Switches bridge humbucker from standard series to parallel wiring for a brighter, clearer tone.

  • Neck Volume (Pull): Switches neck humbucker from standard series to parallel wiring for a glassier, more articulate response.

• 2 × 500k CTS Long Shaft Linear Taper Tone Pots – Smooth, precise tone roll-off.

• Capacitors: 2 × 0.022µF Orange Drop (100V) – Classic warmth with crisp highs.

• Volume Clarity Select Per Pickup (Treble Bleed)

  • 1000pF / 150k Parallel – balanced, natural clarity. Volume taper is more gradual, like a linear pot.

  • 1000pF / 150k Series – brighter, cutting response. Volume Taper is more similar to an audio taper.

  • Off – pure vintage roll-off.

• Wiring: Vintage cloth push-back wire for durability and authentic look.

• Output Jack: CTS short mono jack.

• Solderless PCB: Quick-connect board for pickups & switch—no soldering required.

• Fits Gibson Les Paul & Epiphone Les Paul (hole modification may be necessary)

Why Choose This Harness?

This upgrade adds the ability to flip each humbucker into parallel wiring for lower output, cleaner, and more single-coil-like tones—perfect for funk, blues, or when you need extra clarity. Combine that with Volume Clarity Select, and your Les Paul will retain brightness and definition at any volume setting.

A perfect choice for players who want classic Les Paul power with modern tonal flexibility.

Disclaimer: Epiphone models may require widening the control holes to fit full-size CTS pots. We recommend using a guitar tuner reamer for a clean and safe modification.
