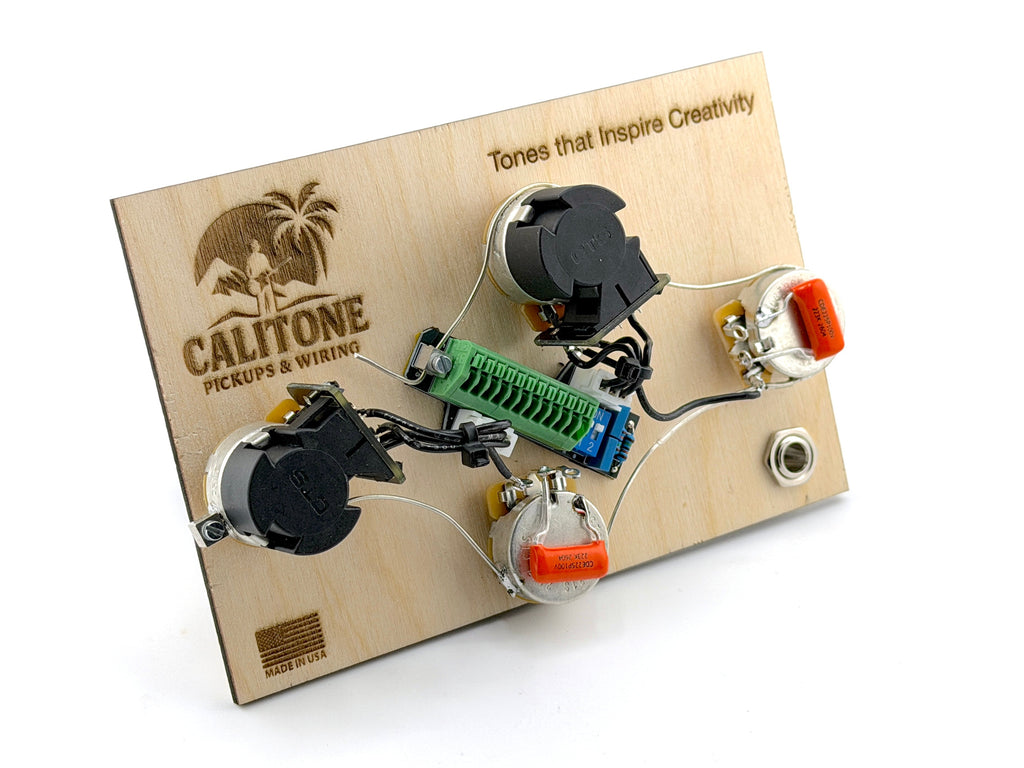

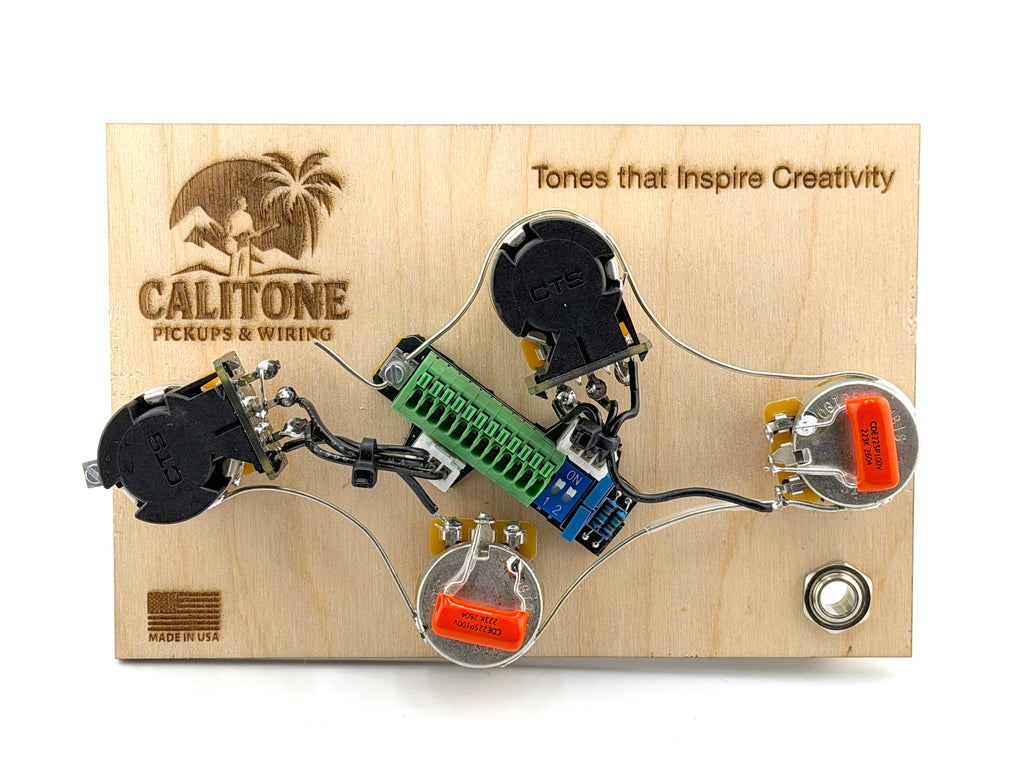

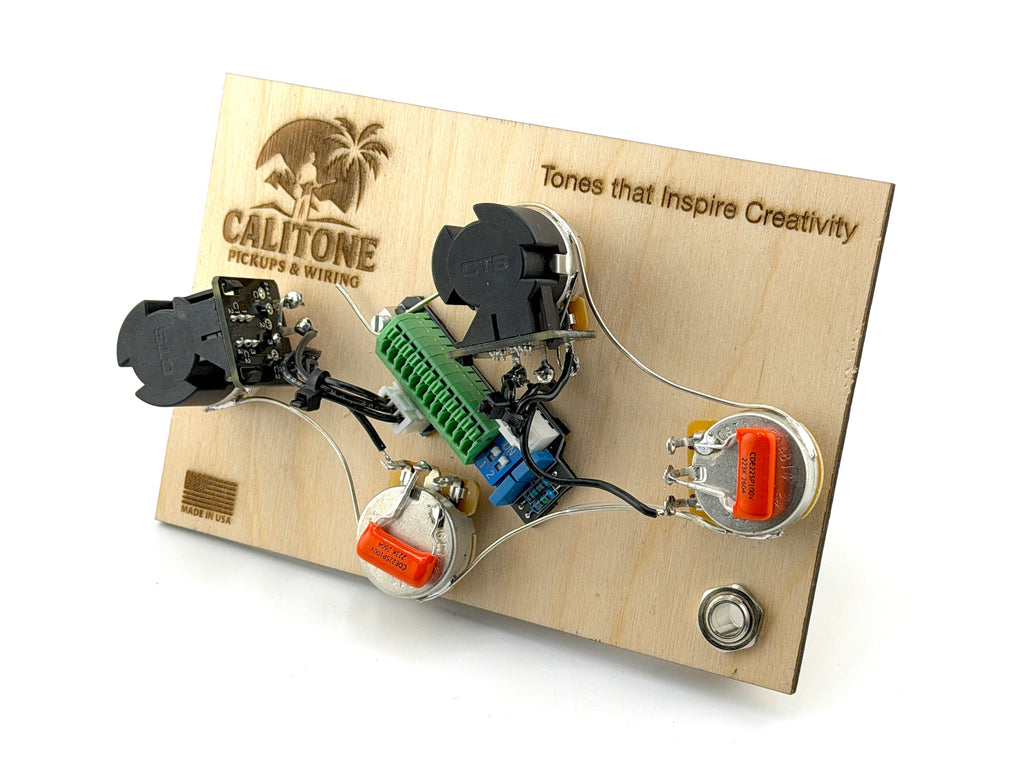

PRS Flex Fit Solderless harness 2v-2t / Coil Split / Diamond Layout

Transform your PRS Zach Myers 594, Tremonti, or other PRS models using the diamond 594-style control layout with a premium solderless wiring harness designed specifically for this configuration. Built around a push-button terminal block system, this harness delivers clear, dynamic humbucker tone with fast, clean installation—no soldering required.

Now featuring independent coil splits for each pickup directly on the volume controls, giving you expanded tonal flexibility while maintaining the clean feel and layout players expect from PRS-style guitars.

Drop-in simplicity. Pro-level tone. Total control.

Designed for PRS Diamond Control Layouts (Important)

This harness is specifically designed for PRS guitars using the diamond 594-style control layout found on models such as:

• PRS Core McCarty 594
• PRS Zach Myers 594
• PRS Tremonti
• Other PRS models that use the same diamond knob layout

Unlike many standard PRS layouts, this configuration follows a Les Paul-style control arrangement:

• Top row = Neck pickup controls (Volume + Tone)
• Bottom row = Bridge pickup controls (Volume + Tone)

This harness is wired specifically for that layout, ensuring correct control operation and intuitive feel.

Features

Independent Coil Splits on Volume Controls

Each volume control features a push/pull coil split for its corresponding pickup:

• Neck Volume = Neck Pickup Coil Split
• Bridge Volume = Bridge Pickup Coil Split

Instantly switch between full humbucker tones and clearer single-coil-style sounds for added versatility across clean, crunch, and high-gain applications.

Compatible with standard 4-conductor humbuckers.

CTS Push/Pull Pots Tuned for PRS Feel

2 × 500k CTS Short Shaft Audio Taper Push/Pull Volume Pots
Responsive 10% audio taper volume controls with integrated coil splitting, providing fast volume roll-off and precise control throughout the taper.

2 × 500k CTS Short Shaft Linear Taper Tone Pots
Even, predictable tone roll-off for precise shaping.

Volume Clarity Circuit (1000pF / 150k Parallel)

Maintains high-end detail as you roll down volume, keeping your tone articulate and consistent across clean, edge-of-breakup, and high-gain settings.

High-End Components

• 2 × 0.022µF Orange Drop Capacitors (100V) – Balanced, musical tone shaping
• Pre-Wired Leads – Clean, reliable signal path
• CTS Mono Output Jack – Low-noise, dependable performance

Push-Button Terminal Block System

This harness uses a push-button terminal block connection system—press to insert wire, release to lock.

Benefits include:

• Tool-free installation
• Fast, clean wiring with no soldering required
• Secure wire retention
• Easy pickup swaps or rewiring
• Ideal for mods, upgrades, and experimentation

Perfect for PRS electronics upgrades, pickup swaps, clean DIY installs, and players who want flexibility without soldering.

Why This Harness Works

• Built specifically for PRS diamond 594-style layouts
• Compatible with Core, Tremonti, Zach Myers, and similar models
• Independent coil splits for each pickup
• Correct Les Paul-style control mapping (neck top/bridge bottom)
• Push-button terminal block for fast, tool-free installation
• Volume Clarity Circuit preserves high-end at lower volumes
• Premium CTS components throughout
• No soldering required
• Ideal for upgrades, mods, and custom builds

Compatibility Notes

• Requires 4-conductor humbuckers for coil split functionality
• Designed only for PRS guitars using the diamond 594-style control layout
• CTS pots are larger than stock metric pots, so minor hole widening may be required on some SE/import models
• Always verify cavity depth and spacing before installation

Build Time

This is a build-to-order product. Please allow 1 to 14 business days for assembly before shipment.
