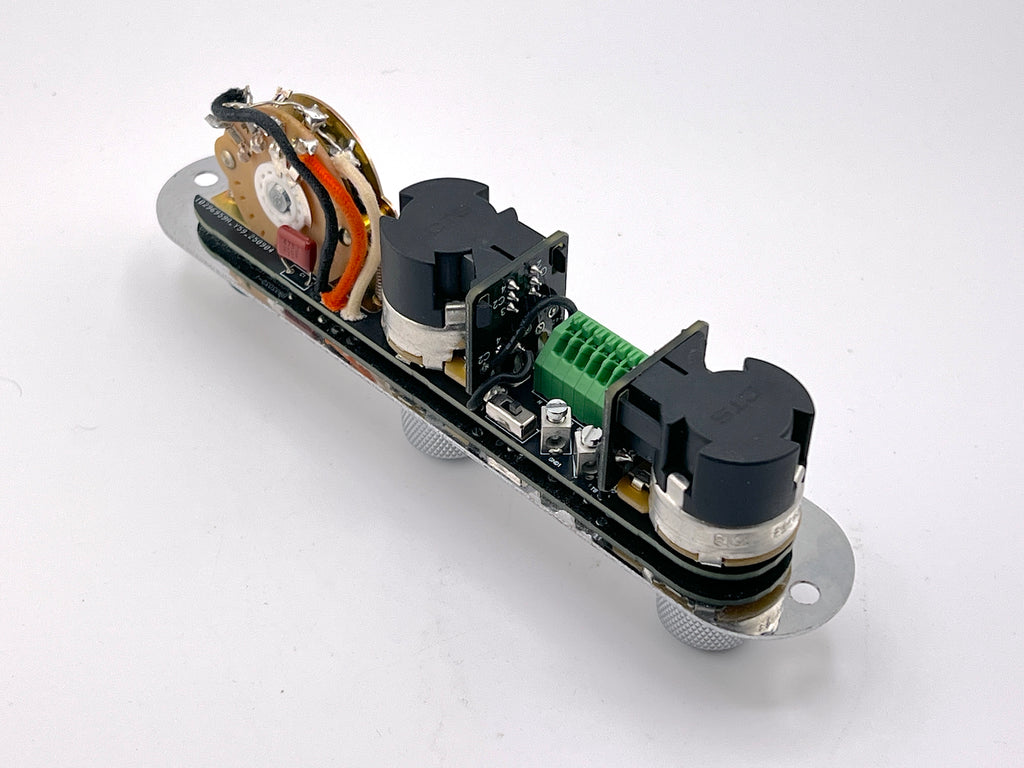

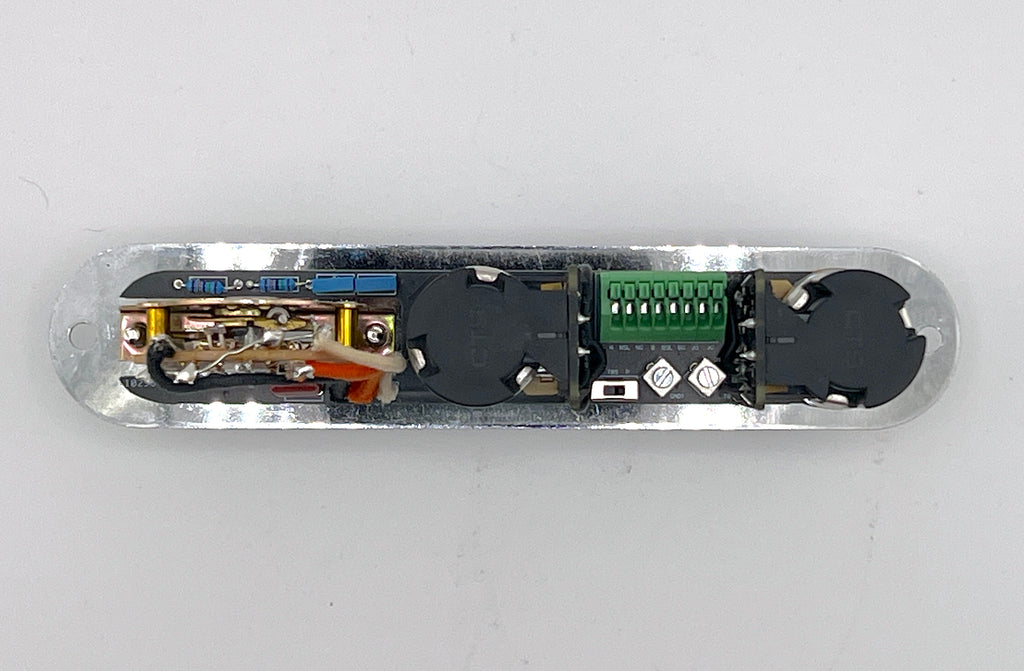

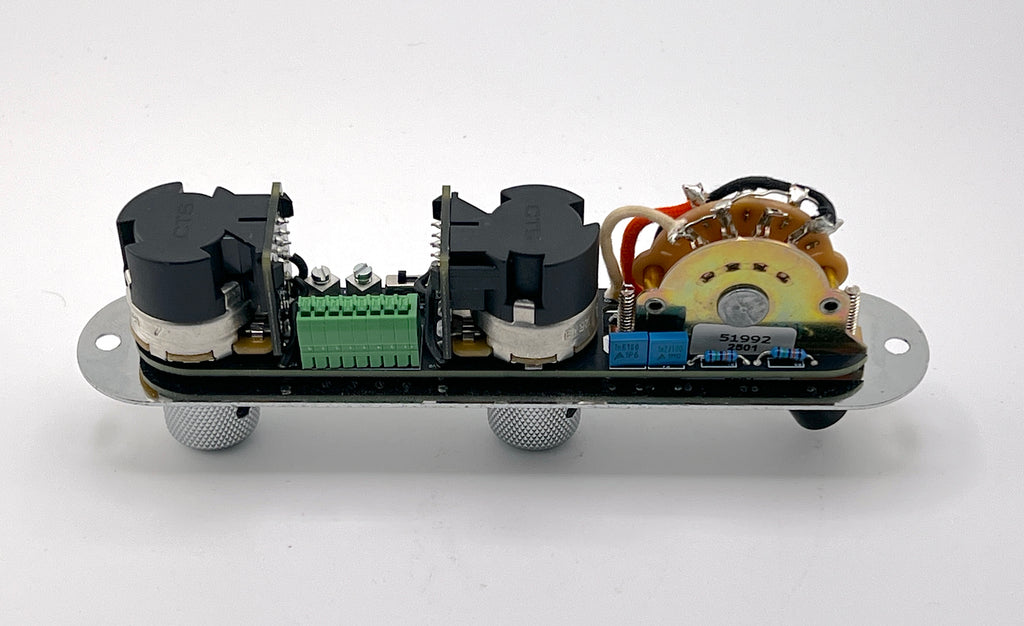

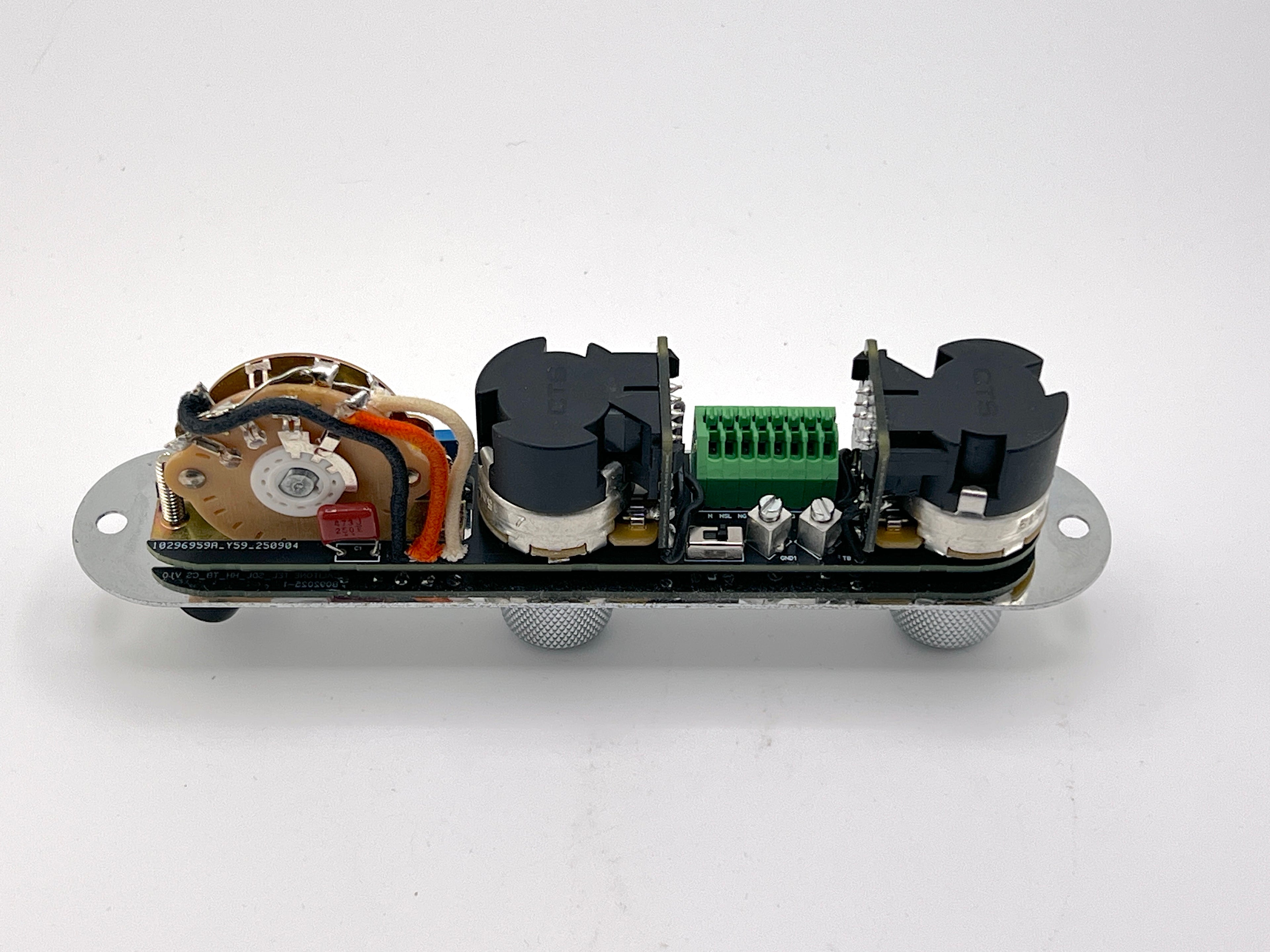

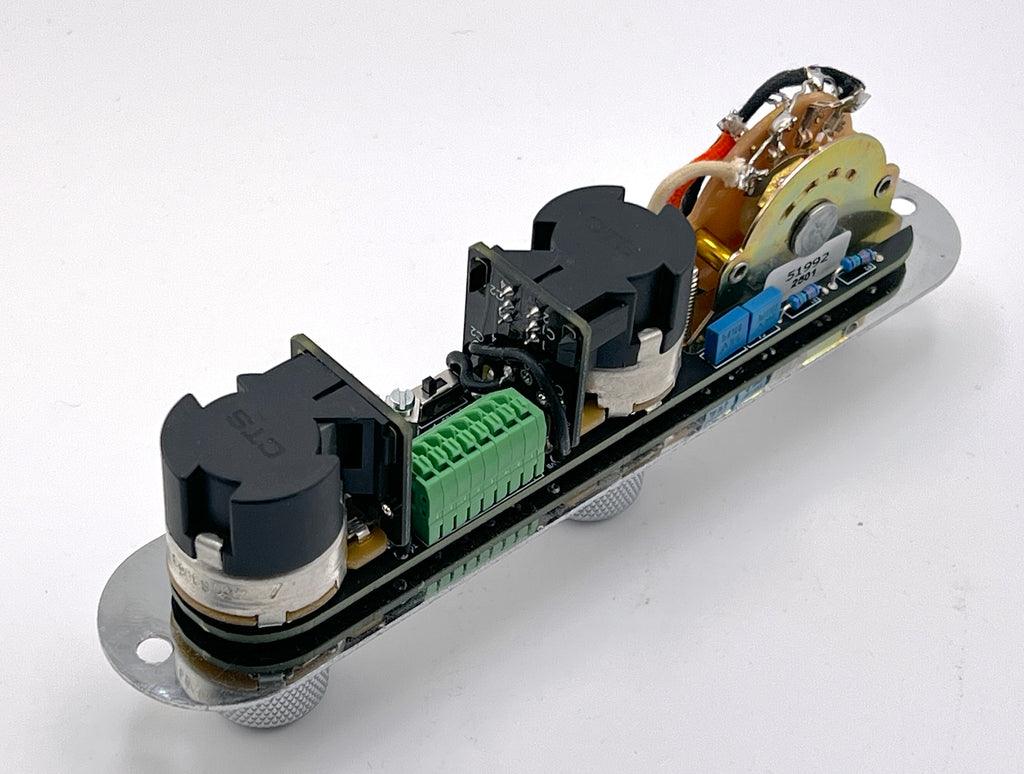

Telecaster H-H Wiring Harness – With Volume Clarity & Coil Split

Transform your dual-humbucker Telecaster into a versatile tone machine with this solderless wiring harness. Featuring coil-splitting and selectable treble-bleed Volume Clarity circuits, this harness delivers everything from powerful humbucker punch to bright single-coil sparkle—all while keeping your tone crisp at any volume.

Features:

• 1 x 500k CTS Short Shaft Audio Taper Push/Pull Volume Pot

  • Push/Pull: Pull splits the neck humbucker to single coil mode.

• 1 x 500k CTS Short Shaft Linear Taper Push/Pull Tone Pot

  • Push/Pull: Splits the bridge humbucker into single-coil mode.

• Capacitor: 1 × 0.047µF (100V) – Classic Tele warmth with clear, articulate highs.

• Volume Clarity Select (Treble Bleed Circuit)

  • 1000pF / 150k Parallel – balanced, natural clarity. Volume taper is more gradual, like a linear pot.

  • 1000pF / 150k Series – brighter, cutting response. Volume Taper is more similar to an audio taper.

• Fender 3-Way Telecaster Switch (with knob) – Standard pickup selection (Bridge / Bridge + Neck / Neck).

• Wiring: Vintage cloth push-back wire for authentic style and durability.

• Solderless PCB: Quick-connect board for pickups—no soldering required.

Why Choose This Harness?

This harness brings modern versatility to your Telecaster while preserving its classic feel. Split your humbuckers for authentic single-coil tones, keep your clarity intact at lower volumes with Volume Clarity Select, or run full humbuckers for thick, powerful output. With pro-grade components and solderless installation, it’s a professional upgrade for players who want the best of both worlds in one Tele.

Disclaimer: Telecaster control plates must have pot holes sized to fit full-size CTS pots (6.35 mm / 1/4"). If your plate has smaller metric holes, you will need a replacement control plate to work with this harness.

**Does not include Telecaster control plate or knobs.**
