Les Paul Vintage Select 50s / 60s with Volume Clarity Select
1/6
  • Les Paul Vintage Select 50s / 60s with Volume Clarity Select
  • Les Paul Vintage Select 50s / 60s with Volume Clarity Select
  • Les Paul Vintage Select 50s / 60s with Volume Clarity Select
  • Les Paul Vintage Select 50s / 60s with Volume Clarity Select
  • Les Paul Vintage Select 50s / 60s with Volume Clarity Select
  • Les Paul Vintage Select 50s / 60s with Volume Clarity Select
Les Paul Vintage Select 50s / 60s with Volume Clarity Select

Les Paul Vintage Select 50s / 60s with Volume Clarity Select

$129.99
Calitone Switchcraft 3-way toggle with Shielded wiring

Reliable shipping

Flexible returns

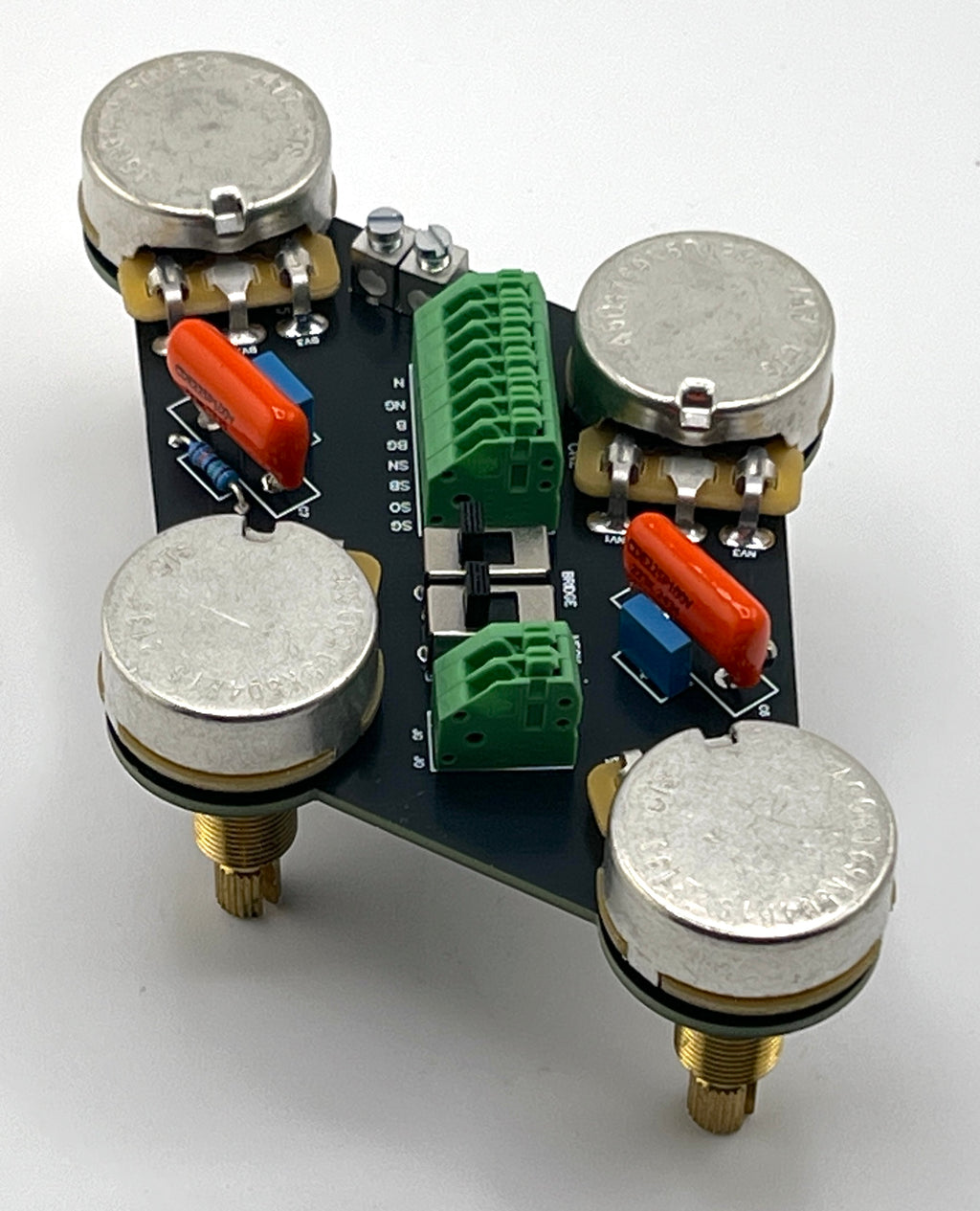

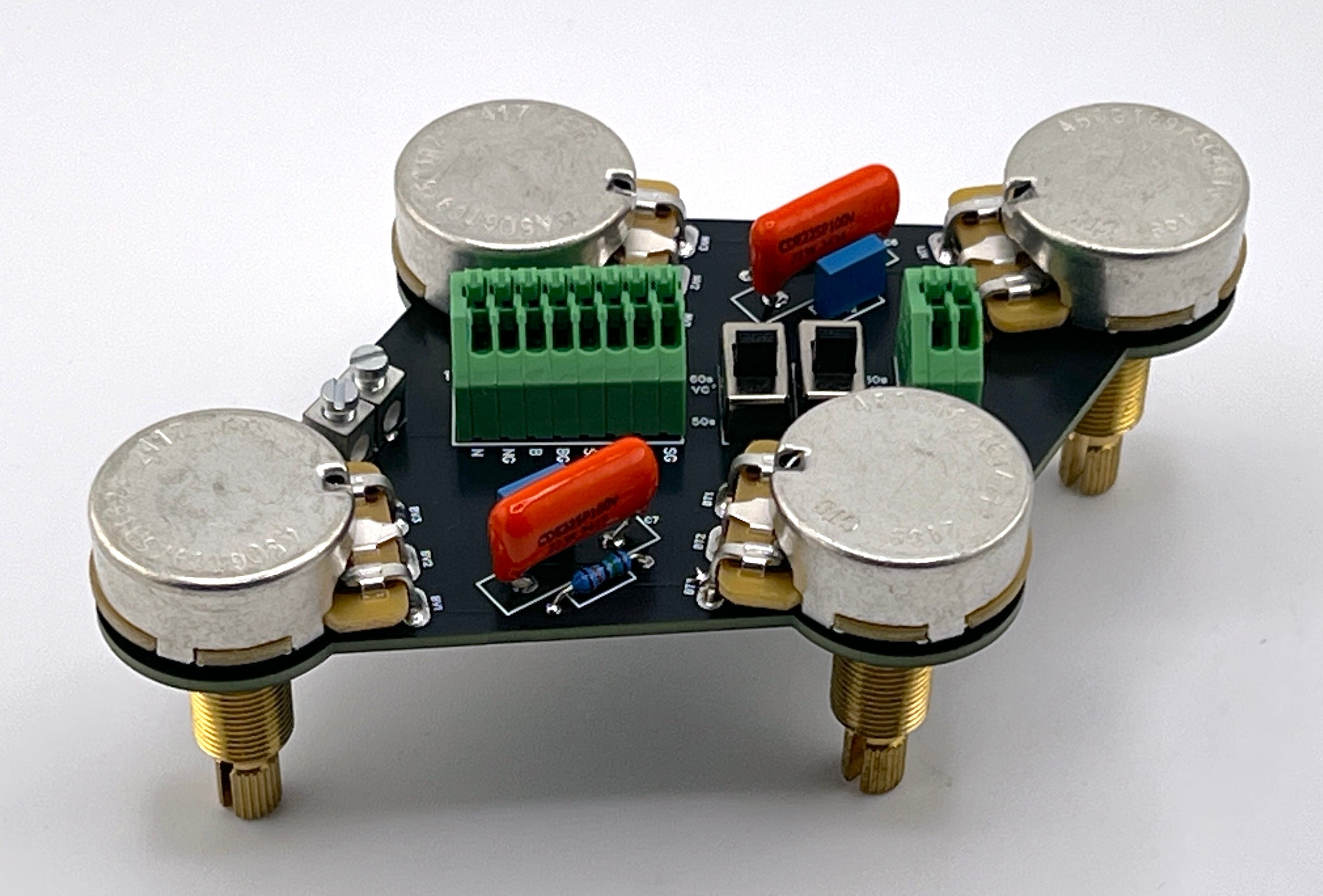

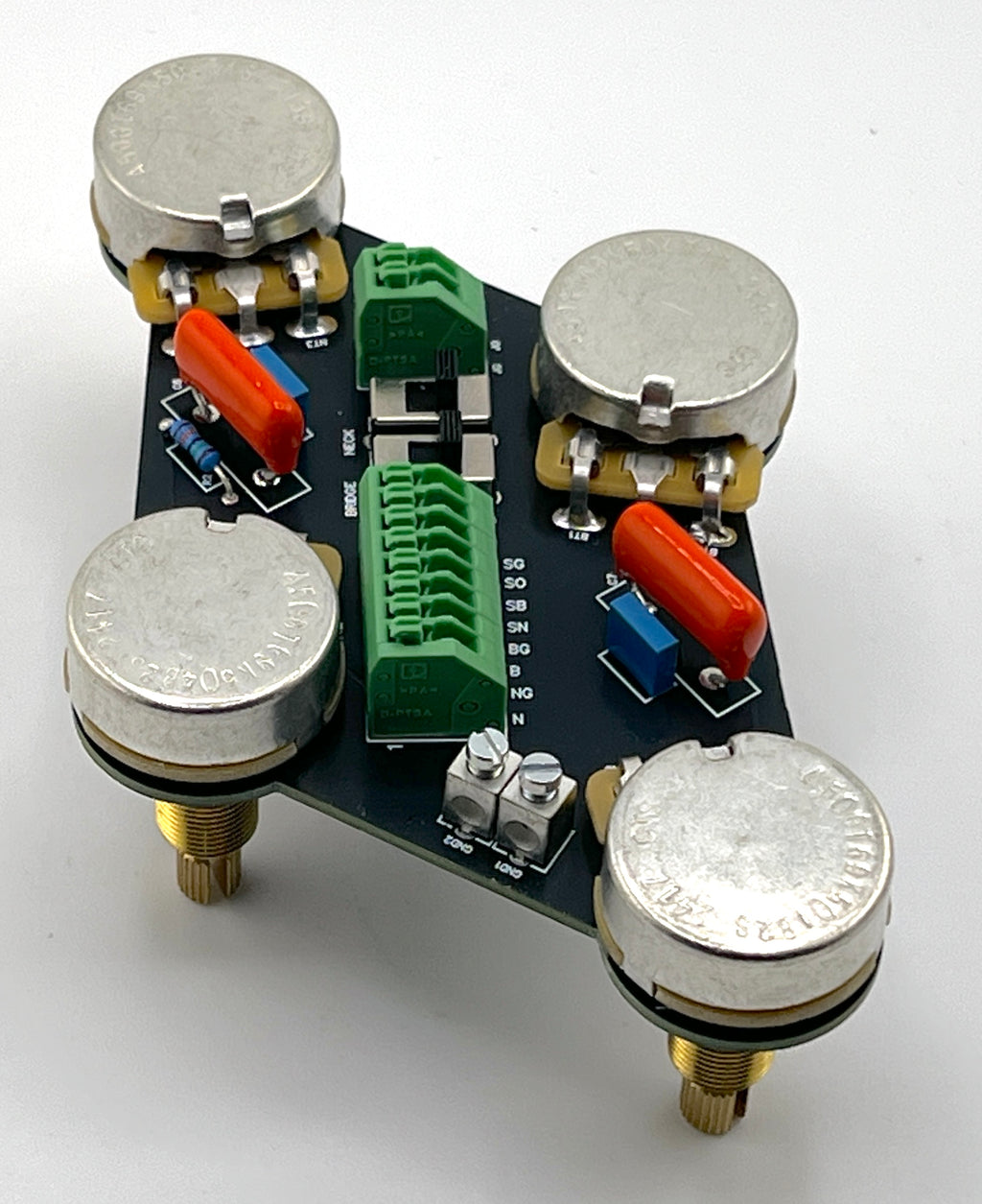

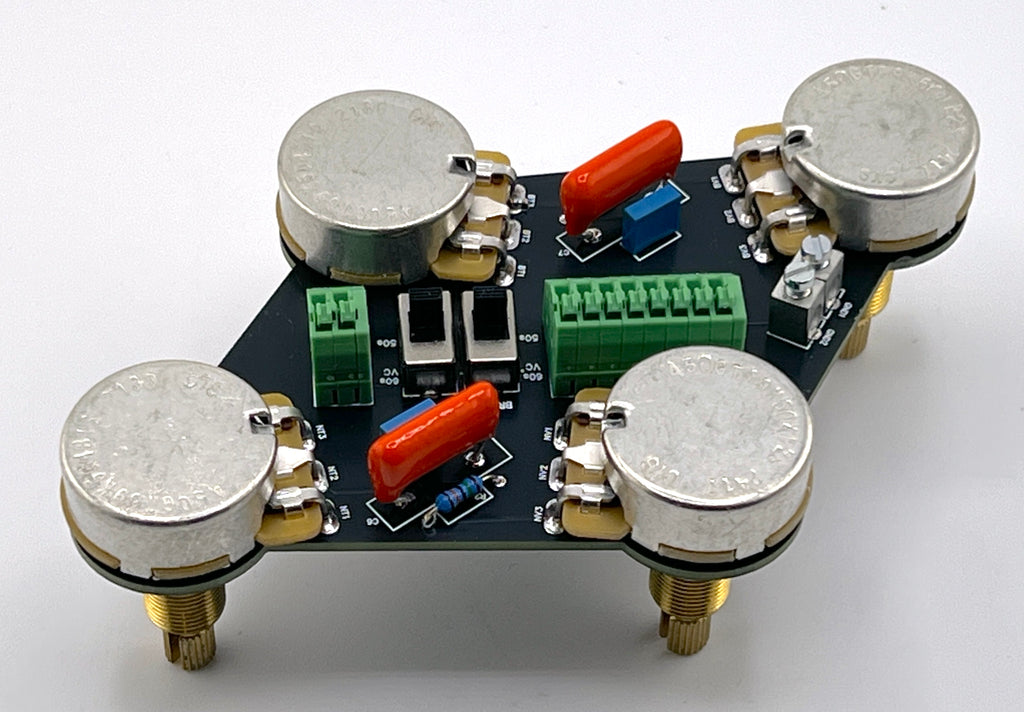

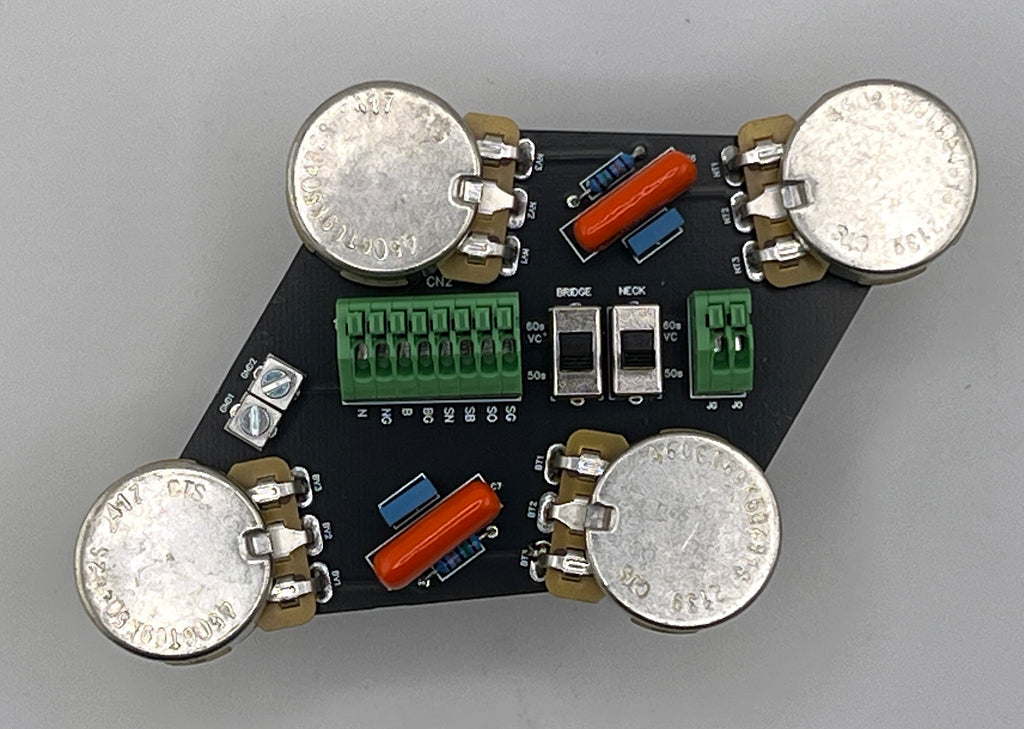

Les Paul Vintage Select Wiring Harness – 50s / 60s with Volume Clarity Select

Get the best of both eras with the Les Paul Vintage Select harness, giving you the choice between classic 50’s wiring or 60’s wiring with switchable treble-bleed Volume Clarity. Built with premium CTS pots, Orange Drop capacitors, and vintage cloth wiring, this harness delivers authentic vintage tone with the option to modernize your controls for added clarity and definition.

Features:

  • 2 × 500k CTS Long Shaft Audio Taper Volume Pots – Smooth and natural control across the full range.

  • 2 × 500k CTS Long Shaft Linear Taper Tone Pots – Accurate tonal shaping with vintage feel.

  • Capacitors: 2 × 0.022µF Orange Drop (100V) – Warm, articulate highs with balanced low end.

  • Wiring Select:

    • 50’s Wiring – Retains brightness when rolling back volume, dynamic and touch-sensitive.

    • 60’s Wiring with Volume Clarity – Consistent tone at all volume settings with optional treble-bleed.

  • Volume Clarity Select Per Pickup (60’s mode):

    • 1000pF / 150k Parallel – balanced, natural clarity. Volume taper is more gradual, like a linear pot.

    • 1000pF / 150k Series – brighter, cutting response. Volume Taper is more similar to an audio taper.

  • Wiring: Vintage cloth push-back wire for durability and classic looks.

  • Output Jack: Switchcraft short mono jack.

  • Solderless PCB: Quick-connect board for pickups & switch—no soldering required.

Why Choose This Harness?

The 50’s wiring option recreates the open, articulate tone of golden-era Les Pauls, while the 60’s wiring with Volume Clarity adds a more modern response—keeping highs intact as you roll down volume. With pro-grade components and solderless installation, this harness is perfect for players who want true vintage character and modern control in one upgrade.

Disclaimer: Epiphone models may require widening the control holes to fit full-size CTS pots. We recommend using a guitar tuner reamer for a clean and safe modification.
